AG80 7-Chambers uPVC/Vinyl Tilt and Turn Window with Nailing Flange

Name: AG80 7-Chambers uPVC/Vinyl Tilt and Turn Window with Nailing Flange
SKU: 0

Introduction：

Engineered for North American homes requiring strong insulation and reliable performance, the AG80 features a 80mm CONCH 7-chamber uPVC profile with steel reinforcement and an integrated nailing flange for easier installation. With U-values below 1.2, triple glazing, and Low-E warm-edge glass, it delivers excellent energy efficiency and comfort. The system is NAFS CW-PG30 certified, ensuring stable air, water, and wind resistance for demanding climates—including Canadian regions.

Key Features:

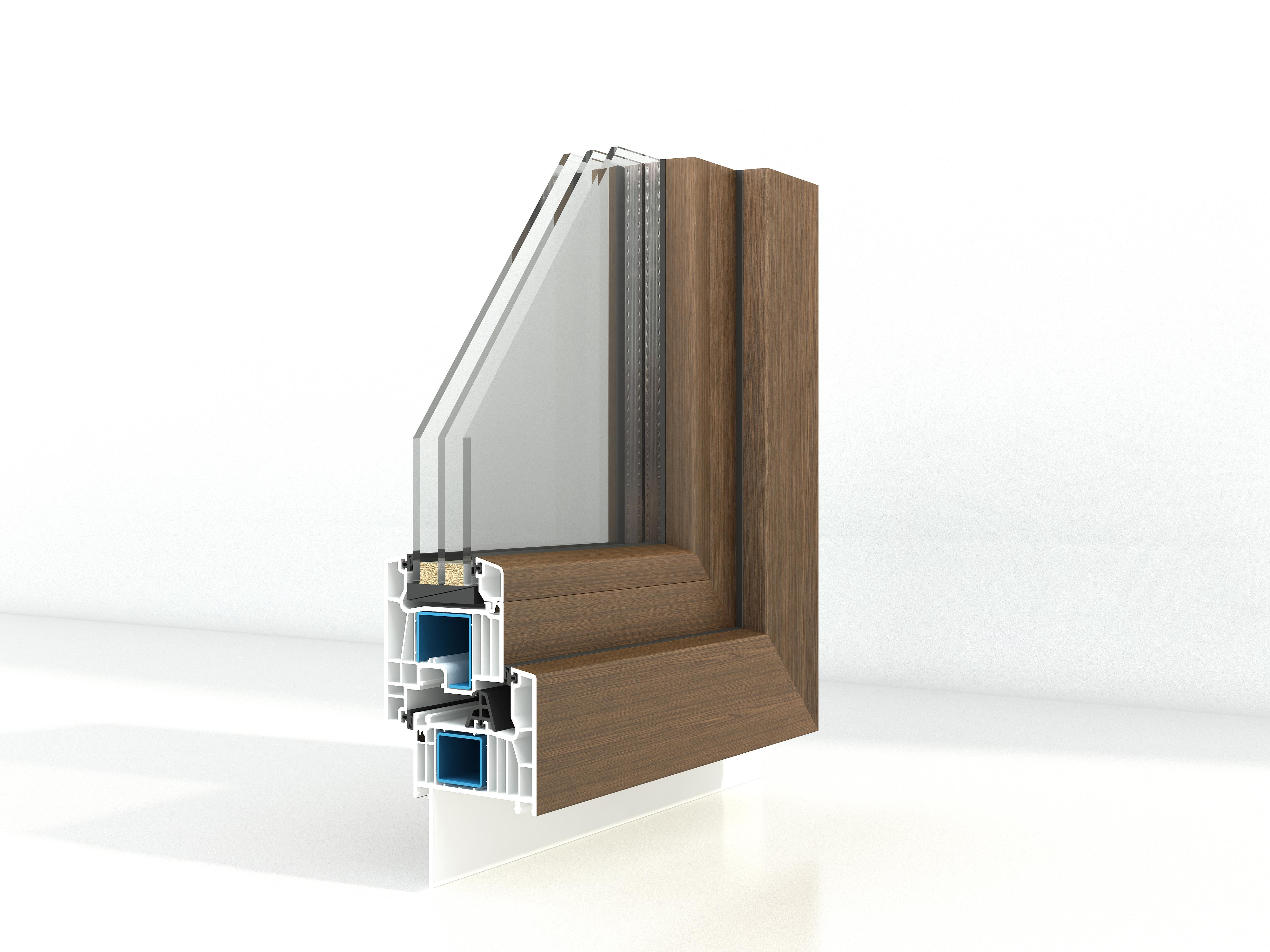

High Energy Efficiency：80mm 7-chamber CONCH profile with steel reinforcement achieves U < 1.2 for cold-climate performance.
Flexible Glazing Options：Triple glazing with Low-E and TGI warm-edge spacers for improved insulation and condensation control.
NAFS CW-PG30 Certified：Successfully passed NAFS CW-PG30,ensures stable sealing and structural reliability in demanding weather conditions.
Premium Hardware:Comes standard with KINGLONG high-end hardware, with optional upgrades to German systems—delivering smooth, secure, and long-lasting operation.

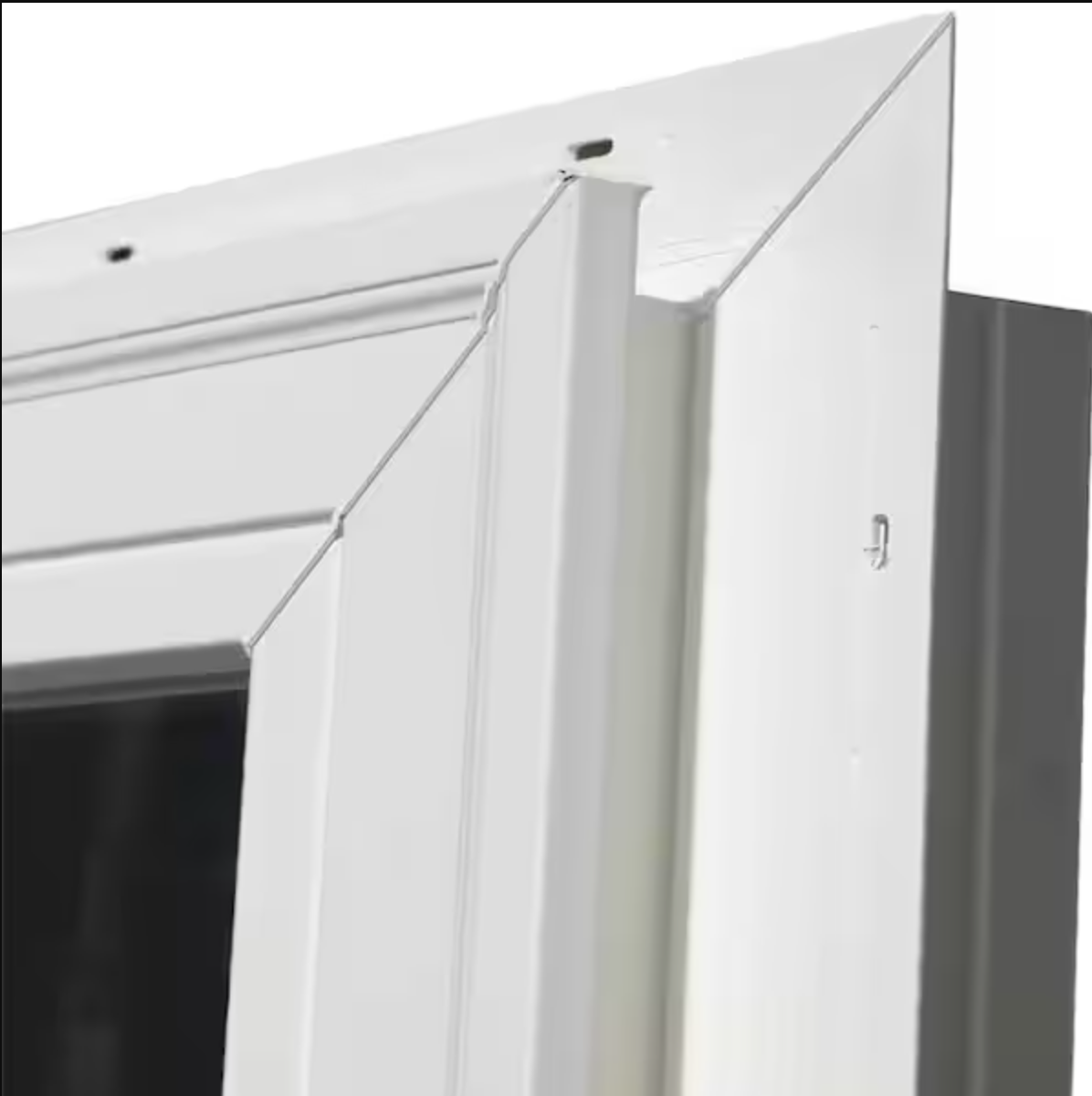

North America–Specific Design:Features an integrated nailing flange, offering easier installation, enhanced anchoring, and full compatibility with North American framing and building methods.

Basic Configuration

Frame material	7-chambers UPVC/Vinyl(CONCH )
Frame thickness	80mm
Thickness	2.7mm
Sealing System	3EPDM
Glass	5DSLow-e+12A+5DSLow-e+12A+5G
Hardware	Kinglong hardware weighting 130kg
U-Factor	≤1.2w/㎡ ·k
Surface Treatment	Film Laminating(German Renolit Film) or white nude color

Thermal Insulation Class 8

Uw≤1.4W/(m·k)

Air Tightness

Class 8

1.5≥q1＞1.0

Sound Insulation

Class 5

Rw≥40dB

Water Tightness

Class 6

500Pa≤△P＜700Pa

Wind Load Resistance Class 10

4.0≤P＜4.5KPa

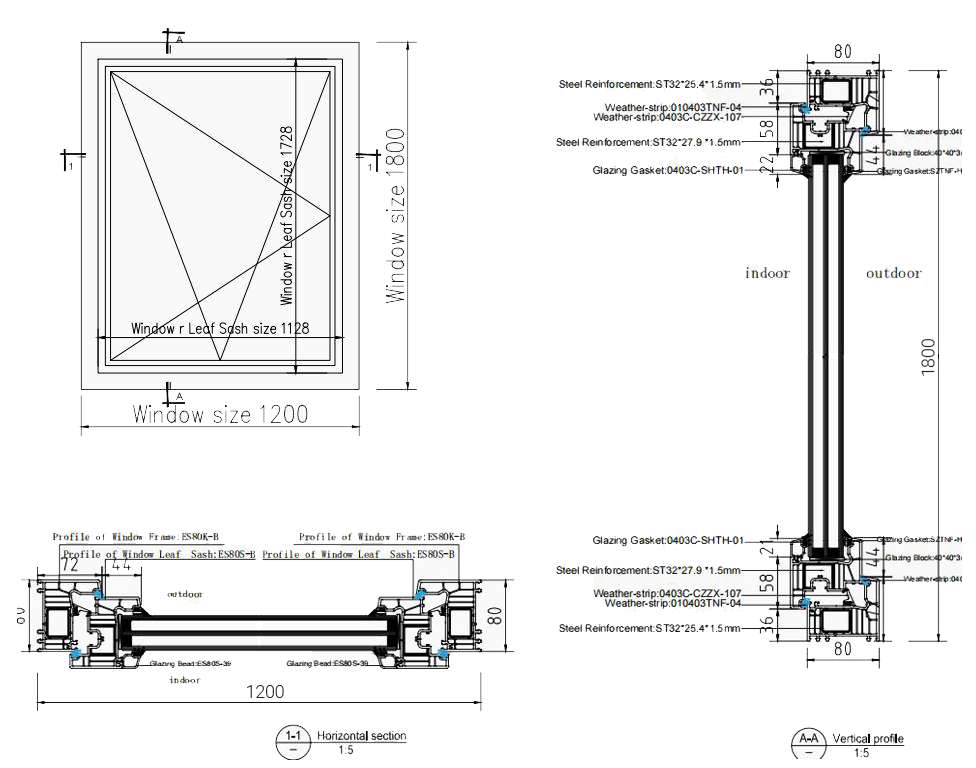

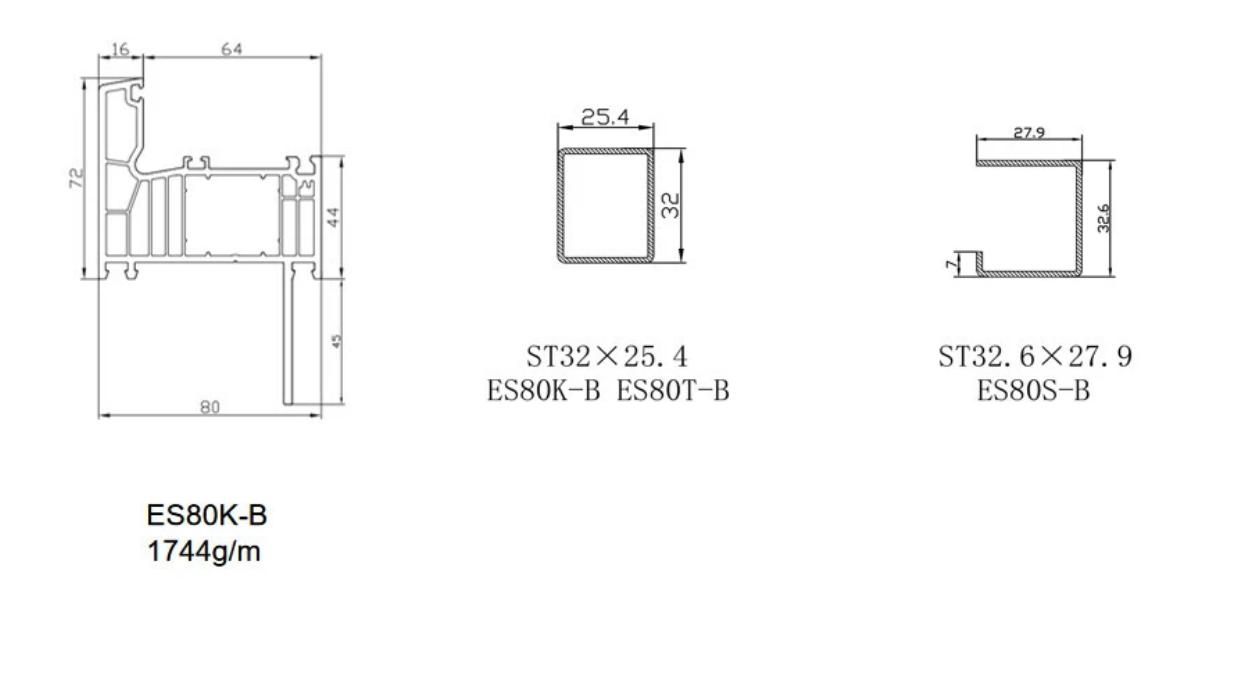

Section Drawing

Technical Specifications

AAMA/WDMA/CSA 101/I.S.2/A440-22

第1页-1

Performance	Tilt and Turn Windows （CW-PG30）
Size	1200mm(Width) x 1800mm(Height)
Air Tightness / Air Leakage	75Pa
Water Penetration Resistance	290Pa
Wind Load Resistance	SLS: ±1440Pa ULS: ±2160Pa
