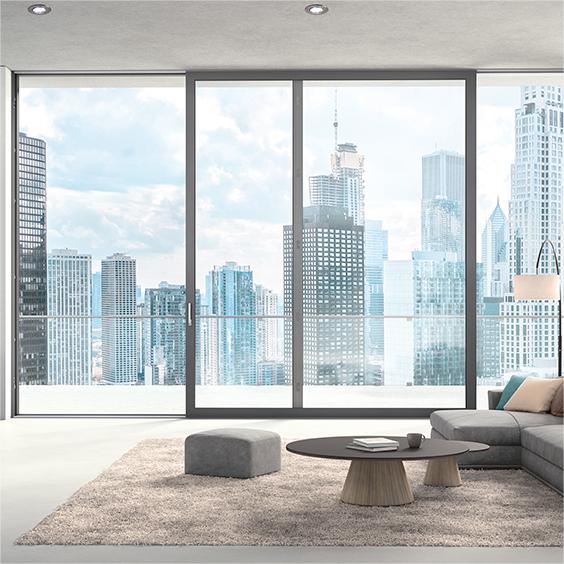

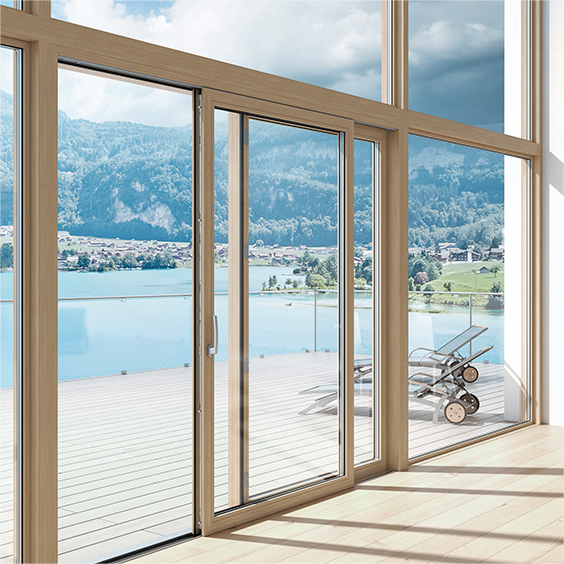

E195 5-chambers uPVC/Vinyl lift and slide door

Name: E195 5-chambers uPVC/Vinyl lift and slide door
SKU: 0

Introduction：

TRYBA Elegant 195 Series Fully Sealed Sliding Door features a 5-chamber UPVC/vinyl profile structure (profile thickness: 195mm, wall thickness: 2.8mm) and a high-airtightness hardware system, paired with dual EPDM foam sponge + pile weatherstrip sealing for superior thermal insulation (U-value ≤1.4 W/m²·K). Equipped with 6mm+12A+6mm+12A+6mm triple-layer tempered glass, it delivers exceptional sound insulation (Rw≥42dB) and wind resistance (5.5 kPa). The Roto hardware system (400kg single-leaf capacity) ensures smooth operation, while the patented opening mechanism combines panoramic views with safety features like anti-pinch design. Available in heights of 750-2400mm and widths of 1450-5000mm, with single-sided film coating surface treatment—an ideal solution for high-end energy-efficient buildings.

Videos

Basic Configuration

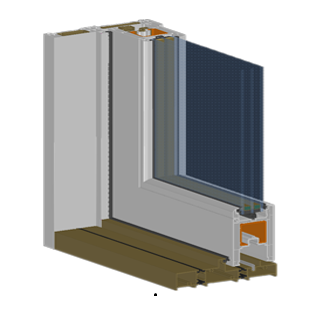

Frame material	5 chambers UPVC/Vinyl profile
Frame thickness	195mm
Thickness	2.8mm
Sealing System	EPDM Foam Sponge & Pile Weatherstrip System
Glass	6mm+12A+6mm+12A+6mm Tempered Glass（24mm/39mm/42mm/51mm）

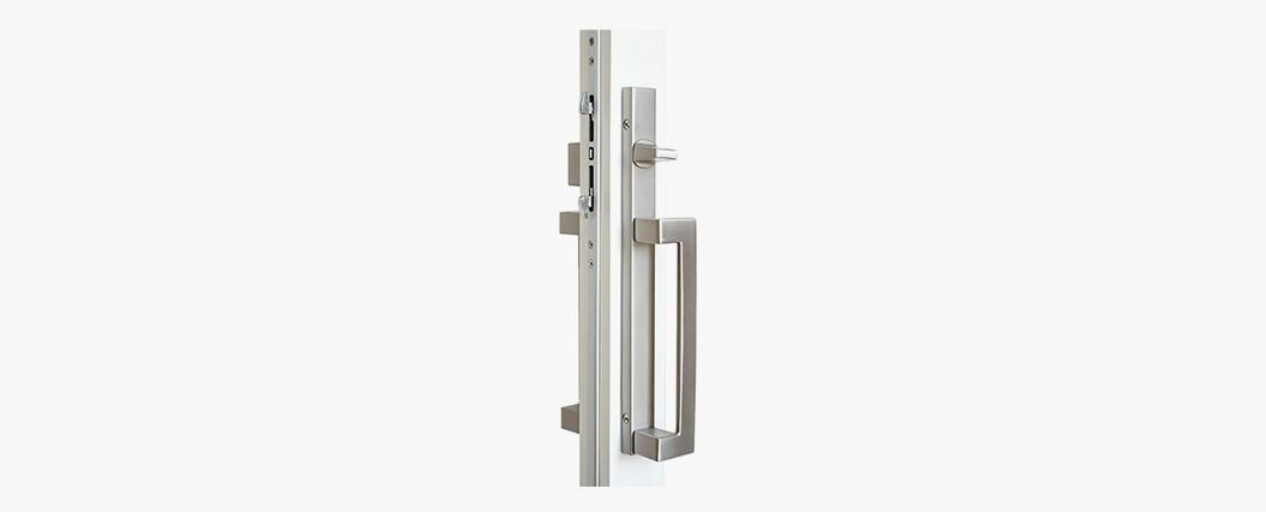

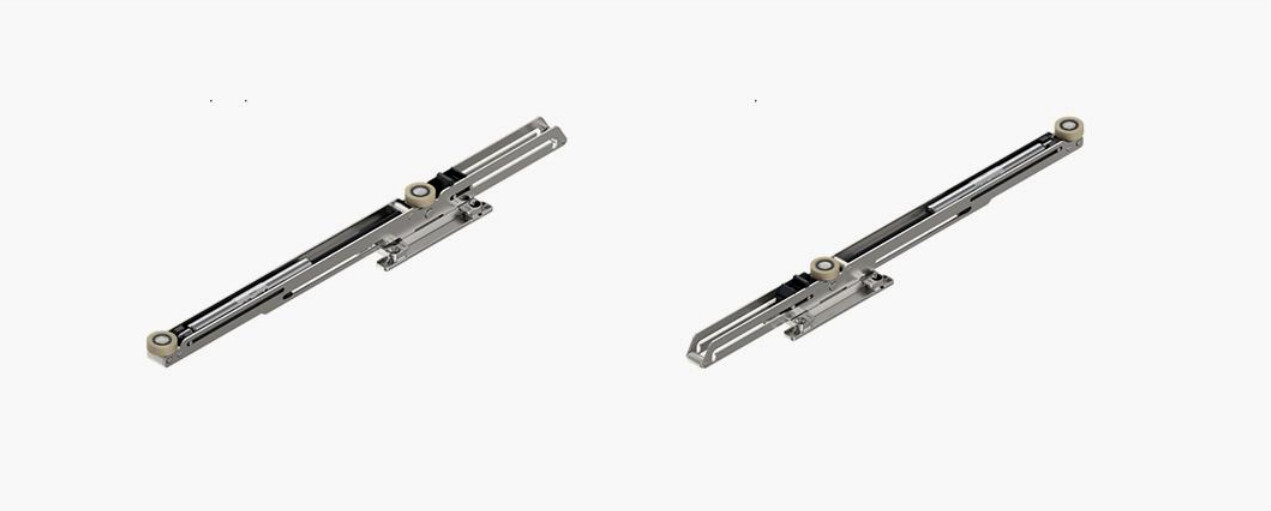

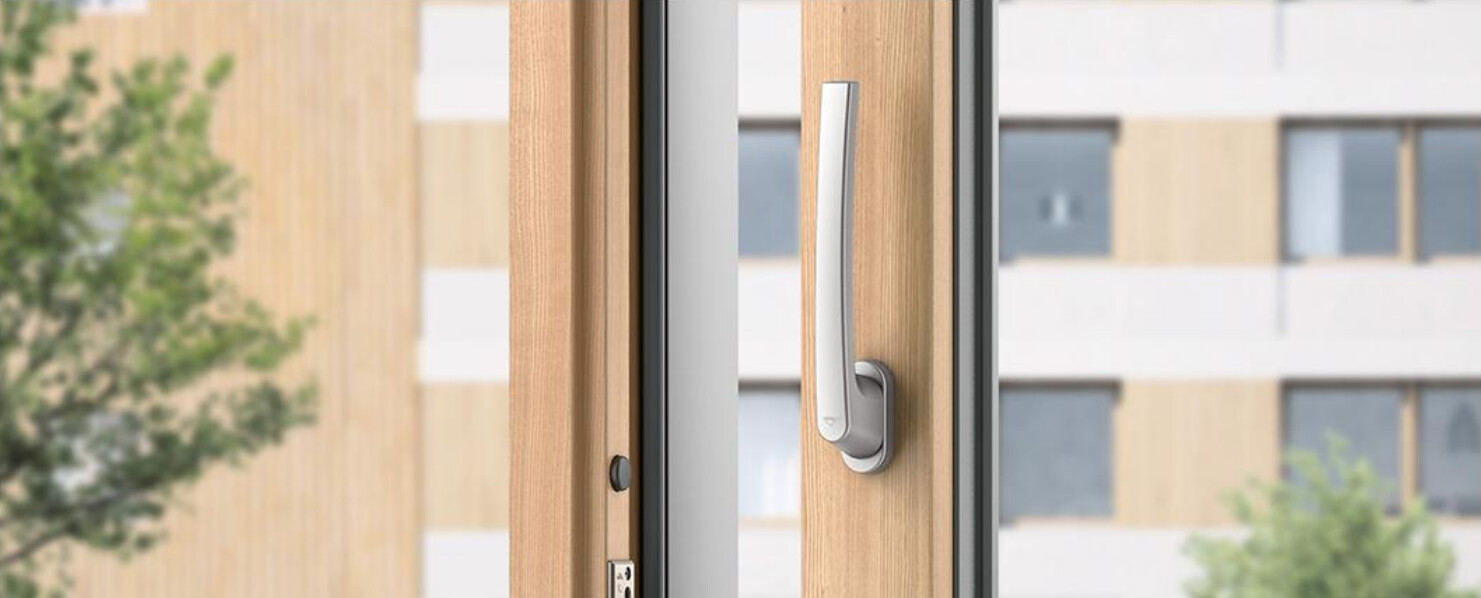

Hardware	Roto hardware weighting 400kg(Single-leaf) for tightly sealed sliding systems
U-Factor	≤1.4w/㎡·k
Height	750mm-2400mm
Width	1450mm-5000mm
Surface Treatment	Single-sided film coating
U factor	0.22
