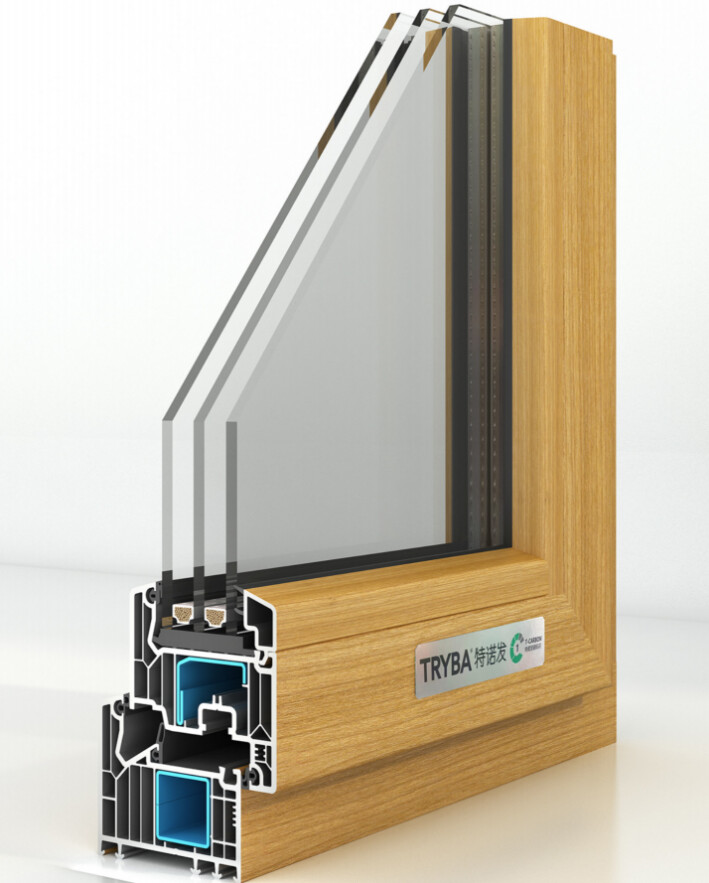

T82 7-Chambers uPVC Tilt and Turn Window for Passive House

Introduction：

The T82 uPVC Tilt and Turn Windows offer a versatile and energy-efficient solution for modern homes. Featuring a multi-functional design, these windows can be tilted for secure ventilation or turned fully open for easy cleaning and access. The durable uPVC frame provides excellent thermal insulation and low maintenance, while the sleek design enhances any interior. Perfect for those looking for a blend of practicality, security, and style.

Basic Configuration

Profile	82mm 7-Chambers VEKA UPVC
Thickness	2.8mm
Sealing System	3EPDM
Glass	6GLow-e+12A+6G+12A+6G Thickness(42/45/48mm)
Hardware	GU Hidden Hinges weighting130kg with window stay
Handle	HOPPE Handle( Silver, Bronze or Bright Gold )
Surface Treatment	Renolit Film
Uw	1.5

Features And Benefits

The hot-dip galvanized steel insert acts as the sturdy framework of doors and windows, significantly improving their structural integrity.

Standard configuration features double-glazed Low-E insulated glass, significantly enhancing the window/door's thermal insulation performance. Compared to conventional clear float glass insulation units, this Low-E solution reduces U-value by over 40%.

Premium exterior coating maintains like-new appearance for years. Effectively reduces solar radiation and heat impact on profile surfaces while lowering material temperature, meeting stringent weather resistance requirements for doors and windows.

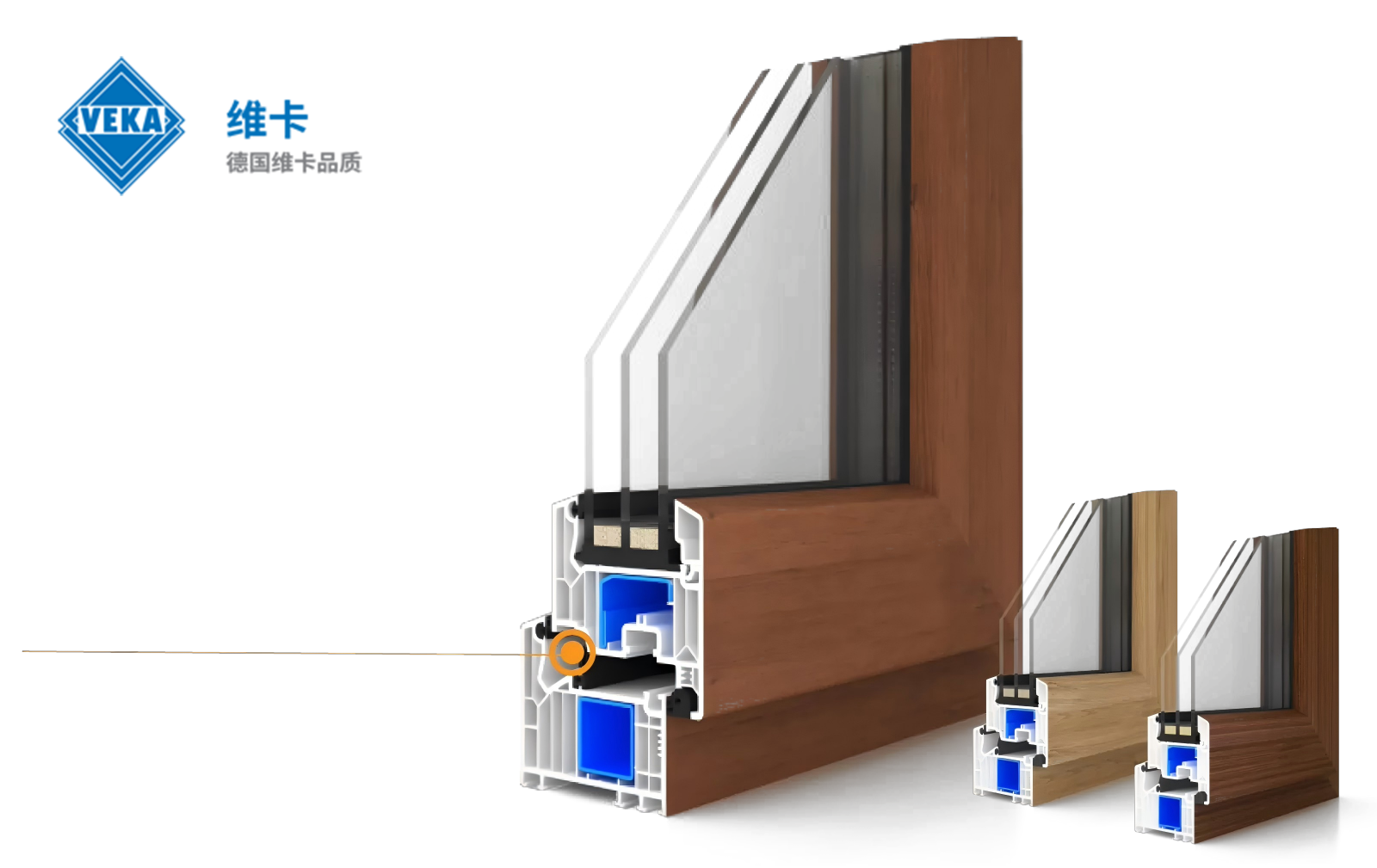

The profile features a 7-chamber structure with an 82mm width, significantly enhancing structural strength, thermal insulation, and acoustic performance.

Profile Node Diagram

Mine Technical Specifications

Material	U-PVC
Frame Thickness	82mm
Opening Method	Tilt & Turn
Surface Treatment	Film Coating
Standard Colors	Refer to Color Chart
Sealing	Triple EPDM
Glass	6GLow-e+12A+6G+12A+6G
Hardware Load Capacity	150kg Bottom-Hung Corner Hinge
Handle	Oval Base Handle
Handle Color	Silver / Bronze / Gold
Lock Cylinder	Without Lock Cylinder
Restrictor	Friction Stay
Drain Hole Cover	Black
