GR90 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Sliding Window

GR90 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Sliding Window

Introduction:

The GR90 Low Power Consumption FRPU Sliding Window offers smooth, space-saving operation with FRPU's material advantages. Made from 80% fiberglass and 20% polyurethane, its profile achieves 1442 MPa bending strength and thermal conductivity of 0.114 W/(m².K)—just 17% of the carbon emissions of traditional aluminum windows. Multi-cavity construction and precision sliding hardware ensure effortless gliding with reliable wind and water resistance, delivering U-values of 2.0–2.2 W/(m².K) and 30–35 dB sound insulation. Ideal for luxury villas, boutique hotels, premium apartments, and high-end commercial spaces needing large apertures, uninterrupted views, and maximum floor area. Corrosion-resistant, salt-resistant, and 0-VOC, the GR90 performs dependably in coastal and urban environments. Choose GR90—quiet, smooth, energy-efficient sliding for a high-end address.
Contact Us

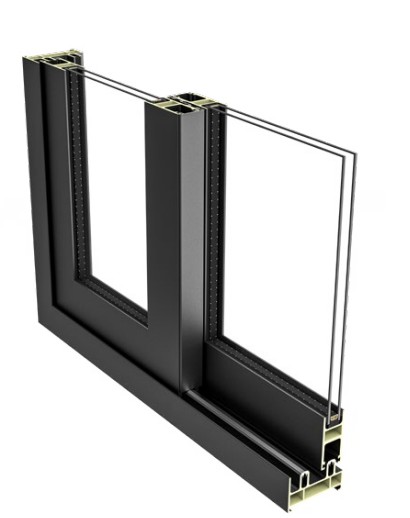

Basic Configuration

1791513048967009571669848064.png@!w400


ProfileFiberglass Reinforced Polyurethane (FRPU) Thermal Break Profile
Structural DesignMulti-Cavity Sliding Structure with Polyurethane Foam Filling (Optional)
Sealing SystemEPDM Sealing System for Sliding Sash
Opening ModeSliding (Horizontal Slide)
Leaf OptionsSingle Leaf, Double Leaf & Multi-Track (Configurable)
Glass5Low-E+12A+5 / 5Low-E+12Ar+5
HardwarePremium Roller and Locking Hardware
U-Factor2.0-2.2 W/(m2.K)
Surface TreatmentEco-Friendly Water-Based Paint
PerformanceWind Load P3 >= 5.0 kPa | Water Tightness 350-500 Pa | Air Tightness q1 2.0-2.5, q2 6.0-7.5 m3/(m2.h) | Sound Insulation 30-35 dB

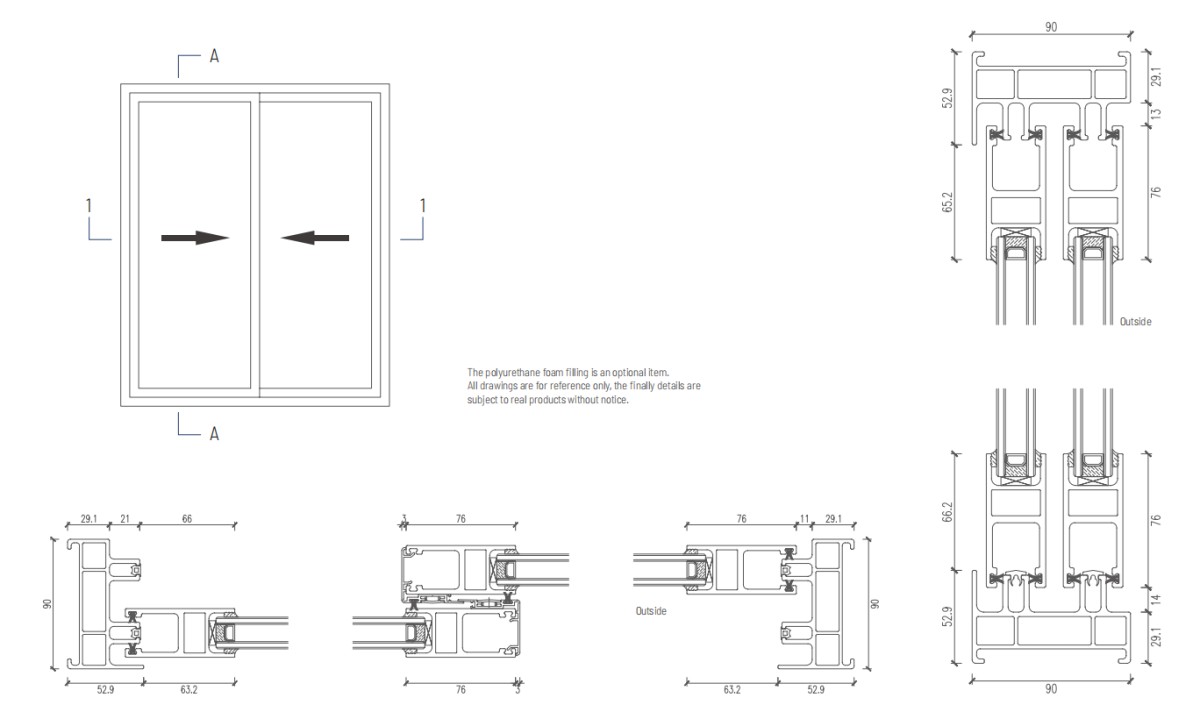

Section Drawing

1791513048967009573519536128.png@!w400


Colors

Basic Colors

图片白底修改 (2)
