GR85 Passive Fiberglass Reinforced Polyurethane (FRPU) Inward-opening Casement Window

GR85 Passive Fiberglass Reinforced Polyurethane (FRPU) Inward-opening Casement Window

Introduction:

The GR85 Passive Fiberglass Reinforced Polyurethane (FRPU) Outward-Opening Casement Window is a high-performance window system specifically engineered for passive house and ultra-low energy buildings. Certified with PHI Passive House Certification, the window combines advanced fiberglass reinforced polyurethane thermal break technology with exceptional airtightness and insulation performance, helping reduce overall building energy consumption while maintaining superior indoor comfort.

Featuring a robust multi-cavity profile structure, triple sealing system, and premium Roto hardware, the GR85 passive window delivers outstanding thermal insulation, sound reduction, and weather resistance for demanding residential and commercial projects. The slim modern appearance, combined with flexible double or triple glazing options, makes it an ideal solution for contemporary architecture requiring both energy efficiency and elegant design.
Contact Us

Basic Configuration

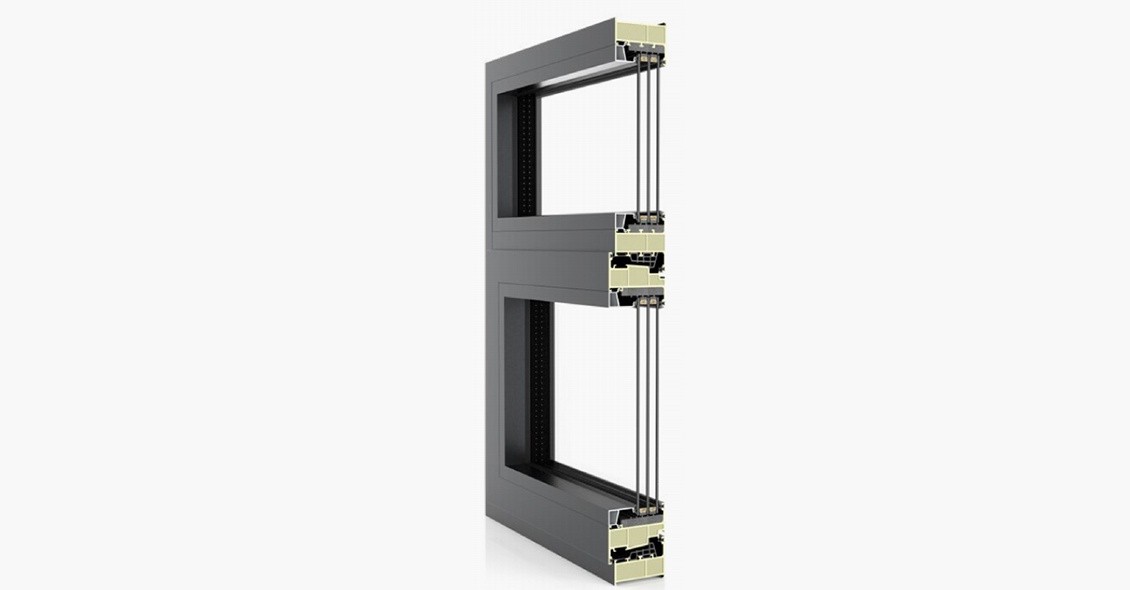

样角


ProfileFiberglass Reinforced Polyurethane (FRPU) Thermal Break Profile
Structural DesignMulti-Cavity Structure
Sealing System3EPDM
Glass5Low-E+12Ar+5+12Ar+5Low-E
HardwareRoto
U-Factor0.8-1.2w/㎡ ·k
Surface TreatmentEco-Friendly Water-Based Paint

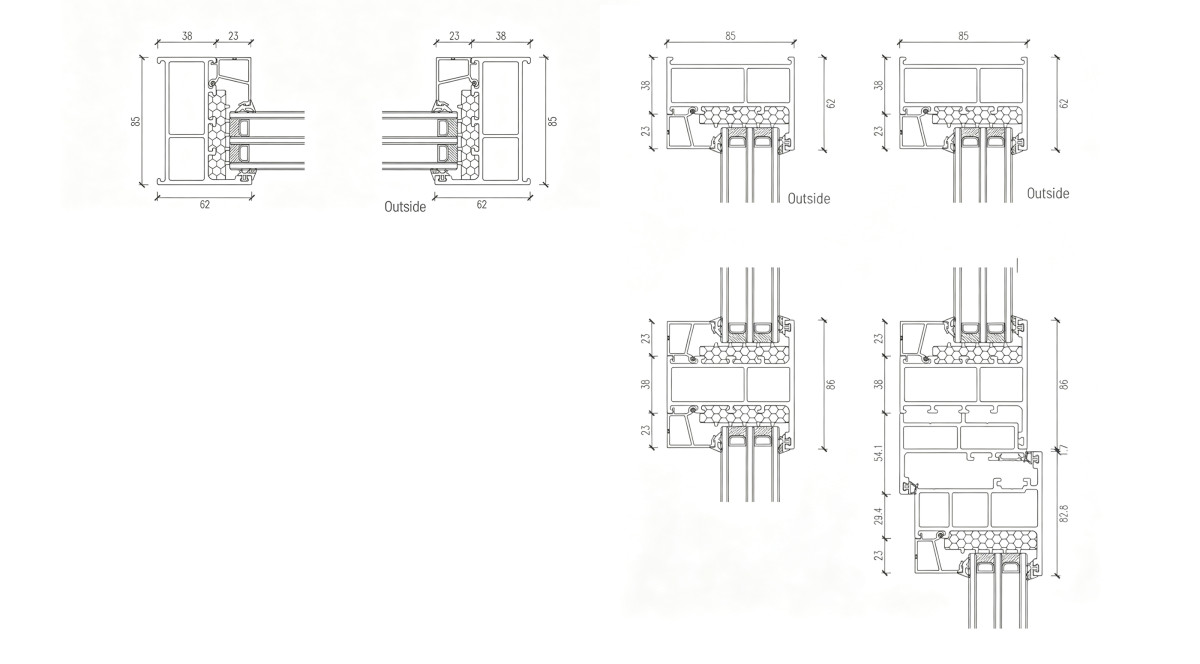

Section Drawing

剖面图


Colors

Basic Colors

图片白底修改 (2)
