QW80 Slim Design Tilt and Turn Window with Screen

QW80 Slim Design Tilt and Turn Window with Screen

Introduction:

The DOPAMINE SERIES 80 Slim Integrated Roller Shutter Window combines minimalist aesthetics, thermal efficiency, and smart integrated functionality for modern residential and architectural projects. Built with premium 6063-T5 thermal break aluminum and an ultra-slim 80mm frame, the system delivers a wider view, enhanced durability, and a clean contemporary appearance.

Featuring a window, screen, and roller shutter all-in-one design, this tilt & turn window provides flexible ventilation, improved privacy, and everyday comfort. The PA66+GF25 thermal insulation system, 5G+18A+5G insulated glazing, and premium Roto hardware ensure excellent thermal performance, smooth operation, and reliable sealing.

Equipped with a removable 304 stainless steel high-transparency mesh, the window allows fresh air circulation while maintaining clear visibility and effective insect protection — ideal for villas, apartments, and modern energy-efficient homes.
Contact Us

Basic Configuration

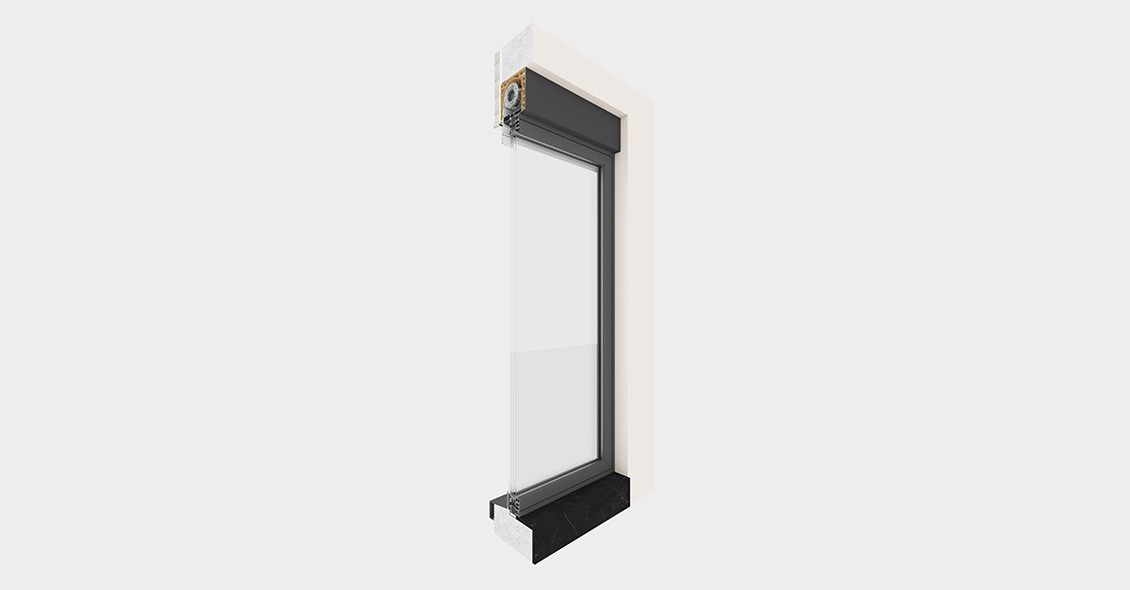

样角


Frame materialThermally broken profiles
Frame thickness80mm
Thickness2.0mm
Glass5G+18A+5G
Thermal Insulation24mm-34mm PA66+GF25
HardwareRoto
Open MethodScreen inside, inward opening & tilt-and-turn (glass sash)
Screen304 Stainless Steel High-Transparency Mesh
(Removable Inward Opening Screen)
ColorGreen, Emerald green,Rose

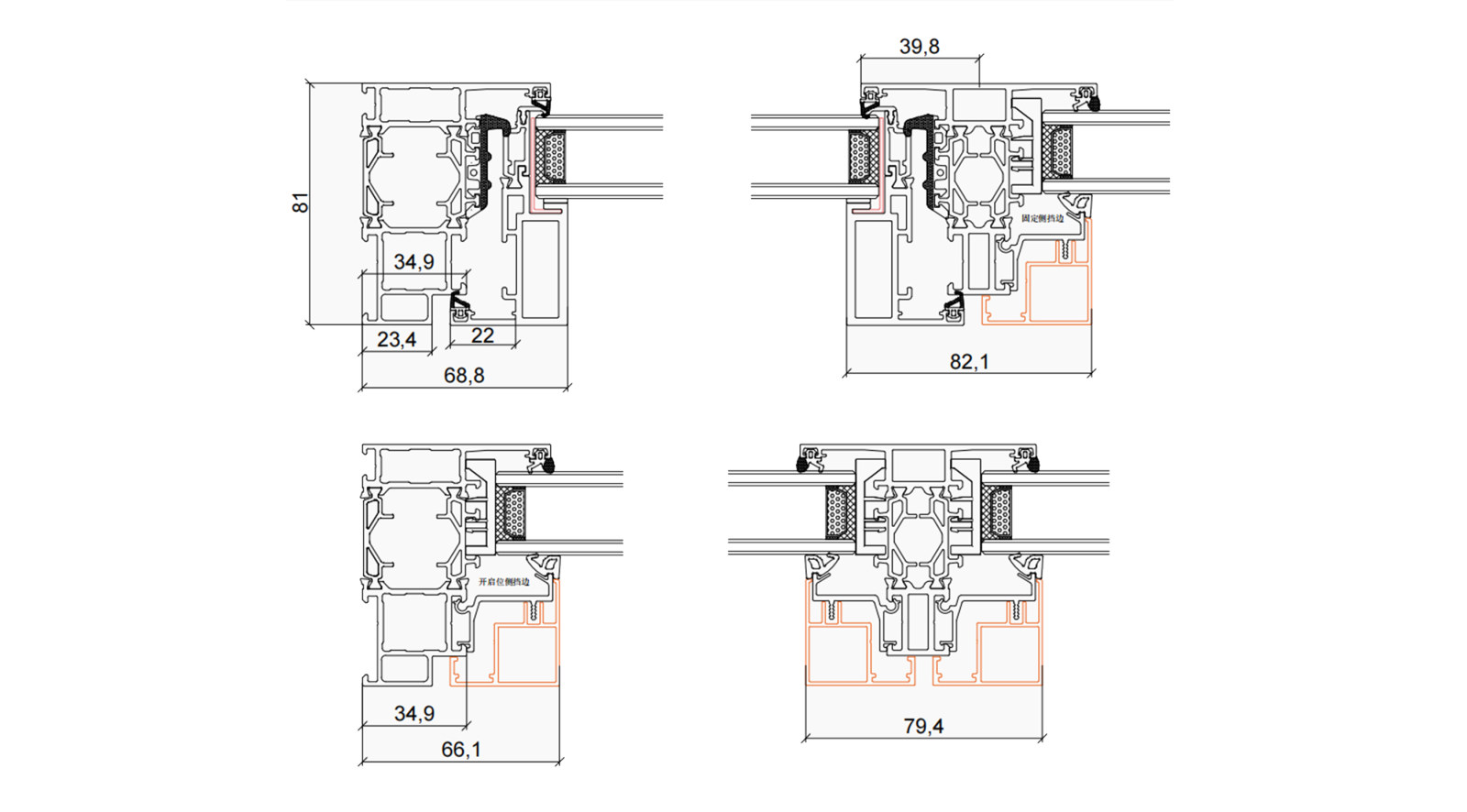

Section Drawing

剖面图


Colors

Basic Colors

颜色
