The 85 Series Aluminum Wood Tilt & Turn window combines a warm composite-wood interior with a durable aluminum exterior, offering dual-function ventilation and high energy performance for modern residential projects. The interior composite material—made from 70% premium wood powder and 30% high-polymer materials—is environmentally safe, exceeding EU RoHS standards, and provides long-term stability with benefits such as no heavy metals, non-toxicity, moisture resistance, Class B1 fire performance, and a 20-year anti-deformation warranty.

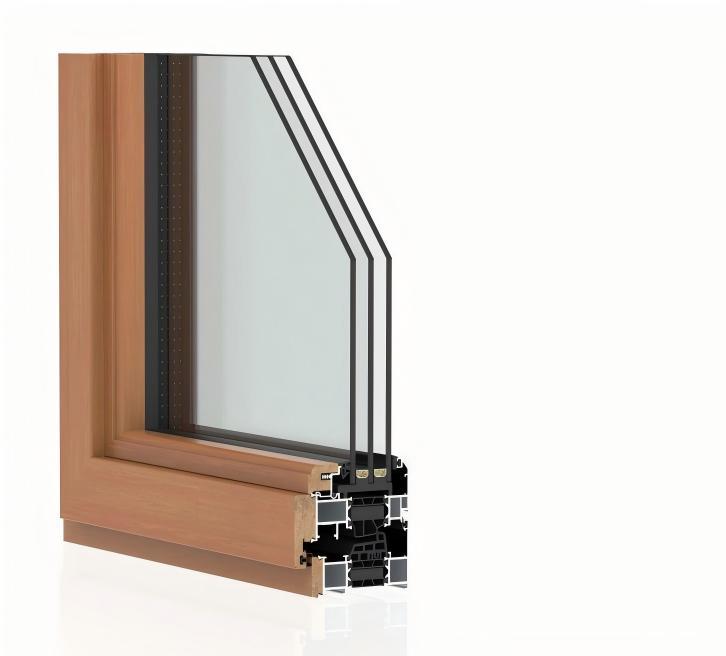

Featuring German Roto hardware, triple glazing, and a 3-EPDM sealing system, the 85 Series achieves U-values below 1.2 and fully meets NAFS and Canadian Energy Star requirements. The tilt & turn operation offers secure micro-ventilation, easy cleaning, and superior airtight performance—making it an ideal solution for cold climates, high-end homes, and projects seeking a premium alternative to traditional wood windows.
Contact Us
Basic Configuration
Frame material
Aluminum+Polymer-Composite Wood(Dezon)
Frame thickness
85mm
Sash thickness
100mm
Thickness
1.8mm
Sealing System
3EPDM
Glass
5DSLow-e+12A+5DSLow-e+12A+5G
Hardware
Roto hinge weighing 150kg
U-Factor
≤1.1-2.0w/㎡ ·k
Size
1000mm≤Height≤1500mm 600mm≤Width≤700mm
Surface Treatment
Film coating

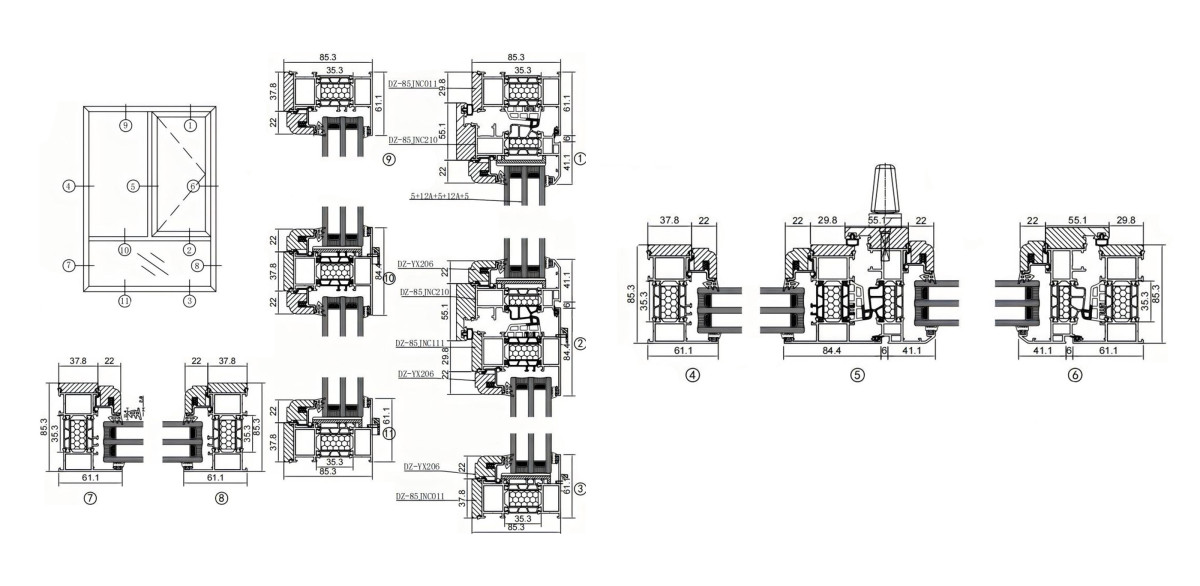

Section Drawing

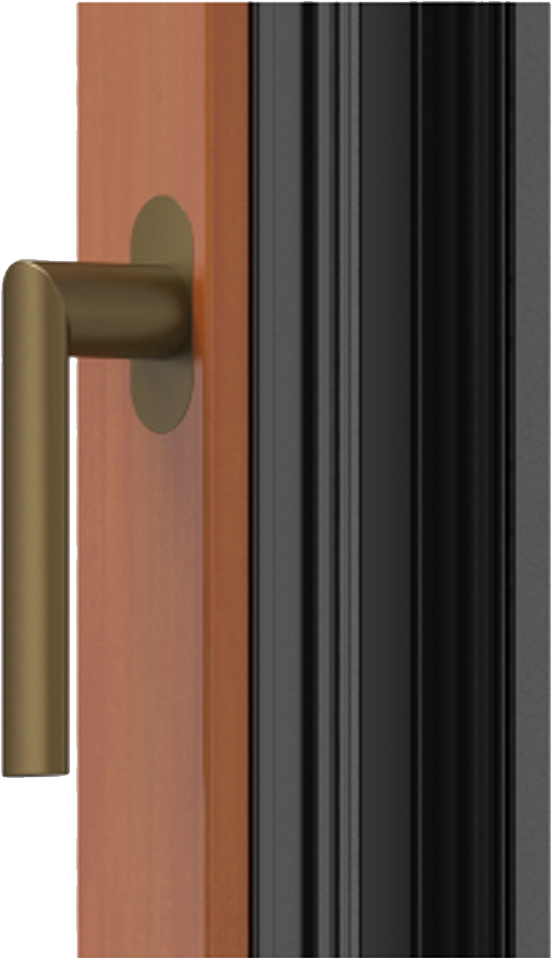

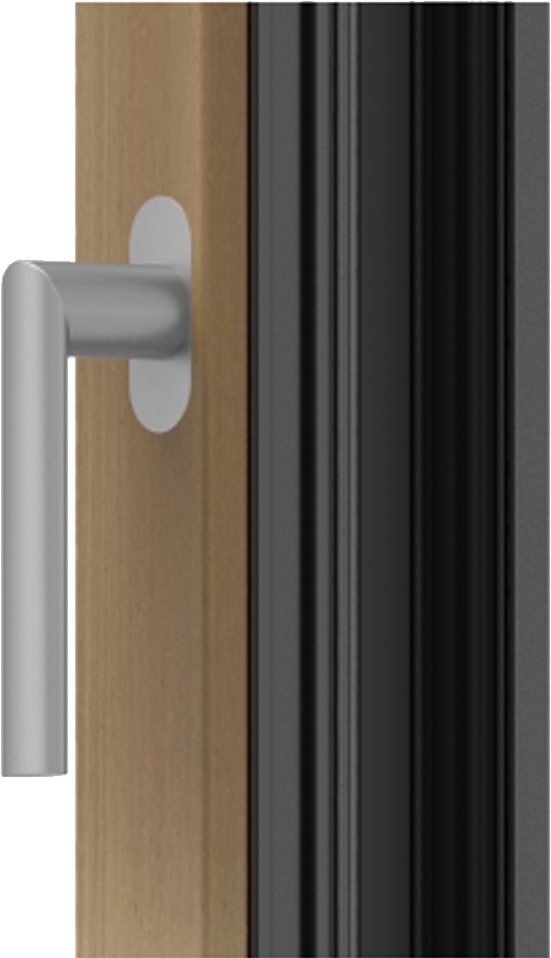

Hardware
Roto
Colors
Indoor Side Color
Custom Wood Color
Weathered Ash
Walnut
Cherry
Cedar White
Dalbergia Bariensis
Weatherproof PVDF Film
Patek Philippe
Cartier
Royal Oak
Outdoor Side Color(Avaliable in customizable colors)
Coffee brown
Metal Gray
