76 American Style Flanged UPVC Fixed Windows

76 American Style Flanged UPVC Fixed Windows

Introduction:

The 76 American Style Flanged uPVC Fixed Windows are designed to provide maximum daylight and unobstructed views while maintaining excellent thermal and weather performance. With a non-operable design, they are ideal for areas where ventilation is not required and energy efficiency is a priority.

Constructed with a multi-chamber uPVC profile and internal reinforcement, the window offers strong structural stability and reliable insulation performance. The integrated flanged design allows for quick installation and creates a secure seal between the window frame and the building envelope, improving long-term air and water tightness.

With a clean American-style appearance, these fixed windows can be seamlessly combined with operable window units to create consistent façade designs for residential and light commercial projects.
Contact Us

Basic Configuration

TypeFixed Windows
Frame material8 chambers UPVC profile
Frame thickness76mm
Thickness1.4mm
Glass3+12Ar+3
HardwareVIG
U-Factor≤1.8w/㎡ ·k
Open Method1 Fixed+1 Sliding  or 1 Sliding+1 Fixed+1 Sliding
ColorWhite/Black or Wood Colors(German Renolit Film)

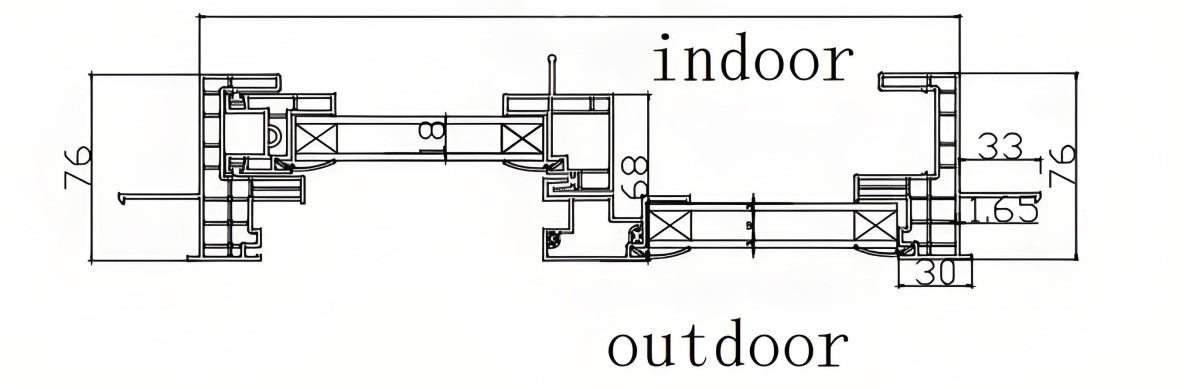

Section Drawing

76-节点图1


Colors

Basic Colors

  • BLACK
    BLACK
  • COFFE
    COFFE
  • GREY
    GREY
  • WHITE
    WHITE

Surface Treatment:German Renolit Film

  • Advantage
  • Up to 30 years service life without discoloration
  • Easy to clean and maintain
  • Suitable for coastal areas and acid rain-prone areas
  • Good decorative effect,wide choices of colors
  • Film coated color
  • Chartwell Green renolite film
  • Slate Grey Finesse renolite film
  • Gardinal Plantin renolite film
  • Crown Plantin renolite film
  • Black Ulti-Matt renolite film
  • Anthracite Grey renolite film
  • Weiss_White renolite film
  • Earl Platinum renolite film
  • Ginger Oak Super-Matt renolite film
  • Yakisugi renolite film
  • Wine Red renolite film
  • Chocolate renolite film
  • Dark Blue renolite film
  • Moss Green renolite film
  • Dark Green renolite film
  • Honey Osk Super-Matt renolite film
  • Weissbach Eiche VLF renolite film
  • Monument Oak renolite film
  • Winchester XC renolite film
  • Rustic Cherry renolite film
  • Golden Oak renolite film
  • Mahogany renolite film
  • Winchester XA renolite film
  • Swamp Oak ST-F renolite film
  • Cherry renolite film
  • Rustic Oak renolite film
  • Nature Oak renolite film

NOTE:If you need more customization requirements,please freely contact us for more information.
