TC70 Classic Thermal Break Aluminum Casement/Awning Window

Introduction:

The TC70 Classic Thermal Break Aluminum Casement/Awning Window from TRYBA combines timeless design with modern innovation. Featuring advanced thermal break technology, it delivers exceptional energy efficiency and superior insulation performance.

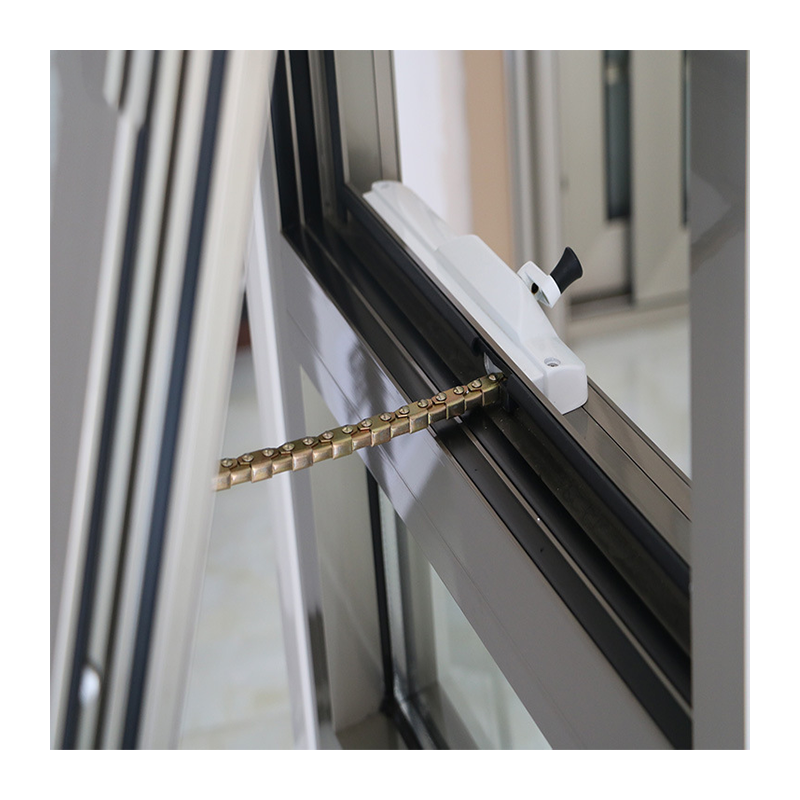

This series offers versatile opening options to suit different user preferences — including handles positioned on the frame or sash, as well as a crank-operated design popular in Australia and also increasingly favored in North America, especially for homes requiring easy operation on high or out-of-reach windows.

The durable aluminum frame ensures long-lasting performance, smooth operation, and reliable weather resistance, making it ideal for both residential and commercial applications worldwide.
CONTACT US

BASIC CONFIGURATION

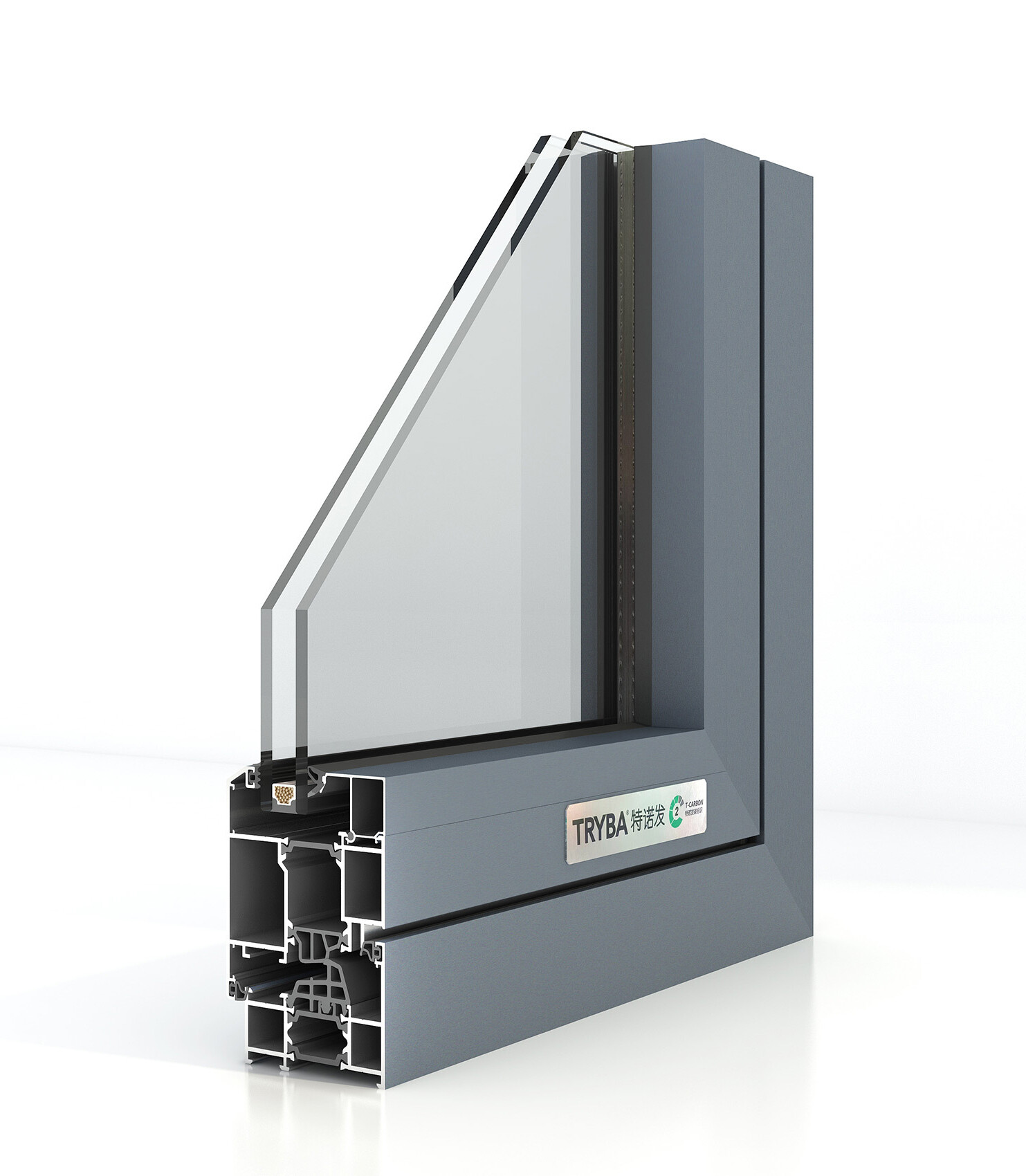

昕丽PLUS-70外开系统窗样角03
Profile70mm Thermal Break Aluminum
Thickness1.8mm
Insulation Strip30mm PA66+GF25
Sealing System3EPDM
Glass6GLow-e+12A+6G Thickness(24/30/31/34/40/42mm)
Hardware

Casement Type: GU Hinge weighing (55kg)

 Anti-FallingParts

Awning Type: GU Top-Hung Series Hinge weihhing (48kg)

Anti-Falling Parts

HandleGU Handle(Silver,Brown or bronze)
Surface TreatmentPowder Coating / Renolit Film
U-value2.0-2.2W/㎡K

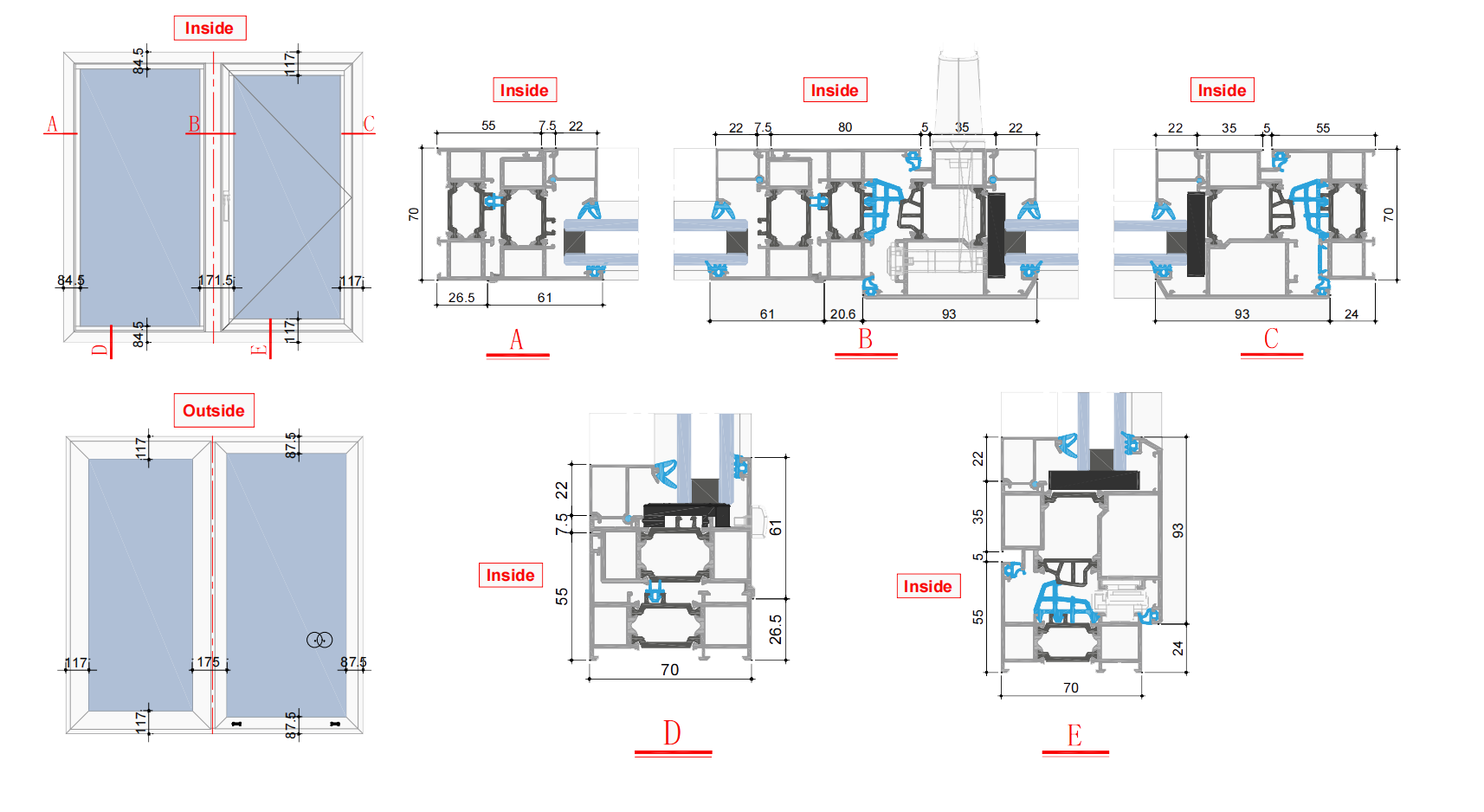

SECTION DRAWING

Technical Specifications

  • AS2047
Window Type70 Aluminum Awning&Fixed Window
Maximum Size (mm)2400H x 2400W
Wind Load ResistanceSLS:+1600Pa
ULS:+3000Pa
Water Penetration Resistance600 Pa
Air Infiltration RatingLow


HANDLE OPTION

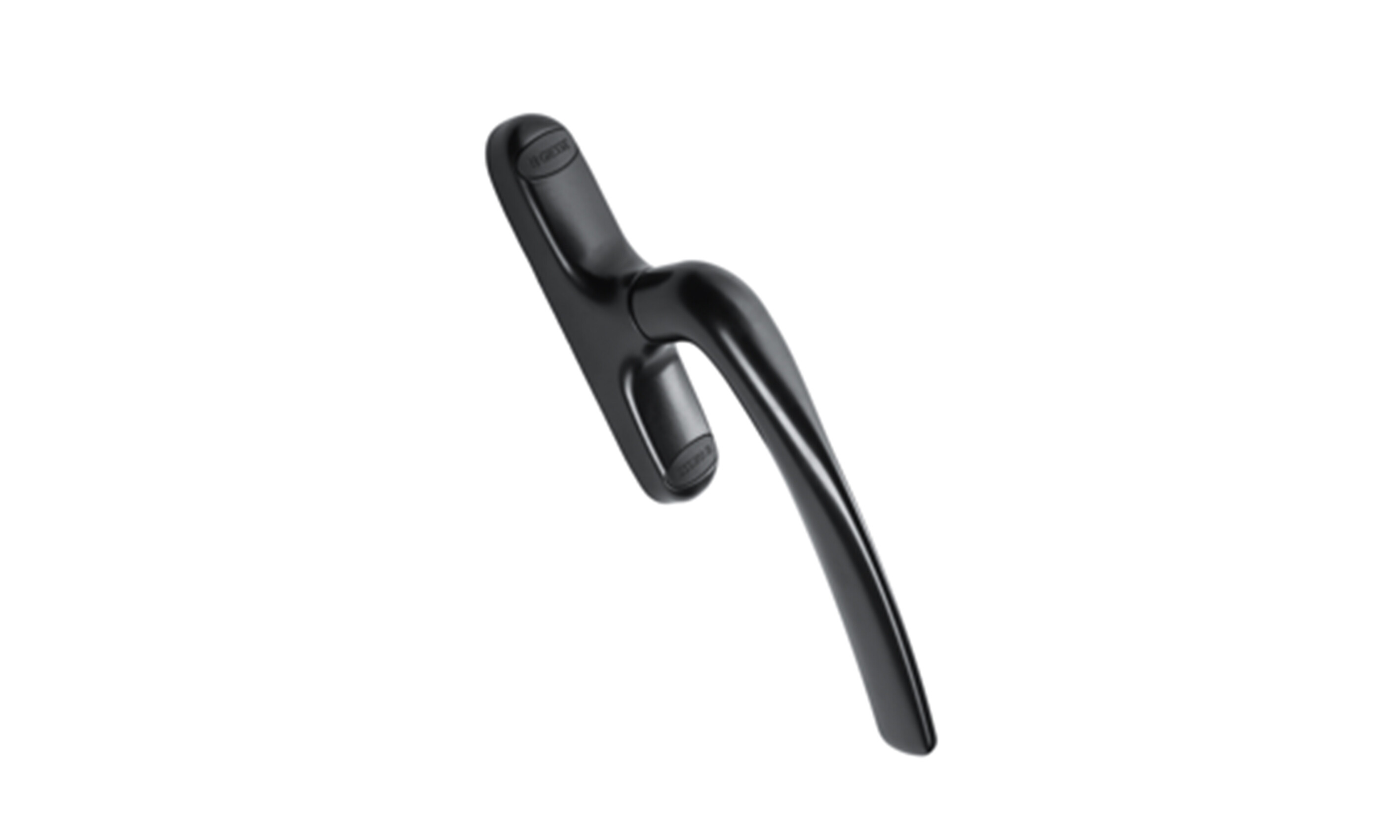

  • 微信图片_20251011100636
  • 微信图片_20251011100644
  • 微信图片_20251011100648

German Gu Handle

微信图片_20251011100636

Italian GIESSE Handle

COLORS

Surface Treatment: Powder Coating

  • BLACK
    BLACK
  • COFFE
    COFFE
  • GREY
    GREY
  • WHITE
    WHITE

Surface Treatment:German Renolit Film

  • Advantage
  • Up to 30 years service life without discoloration
  • Easy to clean and maintain
  • Suitable for coastal areas and acid rain-prone areas
  • Good decorative effect,wide choices of colors
  • Film coated color
  • Chartwell Green renolite film
  • Slate Grey Finesse renolite film
  • Gardinal Plantin renolite film
  • Crown Plantin renolite film
  • Black Ulti-Matt renolite film
  • Anthracite Grey renolite film
  • Weiss_White renolite film
  • Earl Platinum renolite film
  • Ginger Oak Super-Matt renolite film
  • Yakisugi renolite film
  • Wine Red renolite film
  • Chocolate renolite film
  • Dark Blue renolite film
  • Moss Green renolite film
  • Dark Green renolite film
  • Honey Osk Super-Matt renolite film
  • Weissbach Eiche VLF renolite film
  • Monument Oak renolite film
  • Winchester XC renolite film
  • Rustic Cherry renolite film
  • Golden Oak renolite film
  • Mahogany renolite film
  • Winchester XA renolite film
  • Swamp Oak ST-F renolite film
  • Cherry renolite film
  • Rustic Oak renolite film
  • Nature Oak renolite film

NOTE:If you need more customization requirements,please freely contact us for more information.
