GR90 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Sliding Door

GR90 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Sliding Door

Introduction:

The GR90 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Sliding Door opens up interiors to gardens, terraces, and balconies with a wide, unobstructed passage. Its FRPU composite profile - 80% fiberglass, 20% polyurethane - reaches a bending strength of 1442 MPa and a thermal conductivity of 0.114 W/(m2.K), producing only 17% of the carbon emissions of traditional aluminum. Multi-cavity construction and premium roller hardware ensure a smooth, quiet glide, with U-values of 2.0-2.2 W/(m2.K) and 30-35 dB sound insulation.

Ideal for luxury villa living rooms and poolside lounges, boutique hotel suites, premium apartments, and upscale restaurants or retail fronts, the GR90 sliding door maximizes daylight and floor area while keeping energy consumption in check. Resistant to corrosion and salt, and 0-VOC, it performs beautifully in both coastal and metropolitan settings. Slide into a more spacious, more efficient way of living - choose GR90.
Contact Us

Basic Configuration

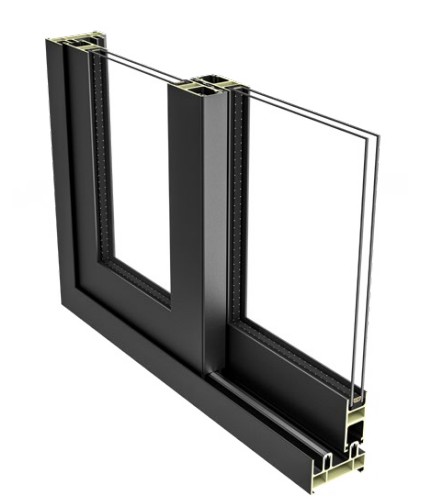

GR90 推拉门1


ProfileFiberglass Reinforced Polyurethane (FRPU) Thermal Break Profile
Structural DesignMulti-Cavity Sliding Structure with Polyurethane Foam Filling (Optional)
Sealing SystemEPDM Sealing System for Sliding Sash
Opening ModeSliding (Horizontal Slide)
Leaf OptionsSingle Leaf, Double Leaf & Multi-Track (Configurable)
Glass5Low-E+12A+5 / 5Low-E+12Ar+5
HardwarePremium Roller and Locking Hardware
U-Factor2.0-2.2 W/(m2.K)
Surface TreatmentEco-Friendly Water-Based Paint
PerformanceWind Load P3 >= 5.0 kPa | Water Tightness 350-500 Pa | Air Tightness q1 2.0-2.5, q2 6.0-7.5 m3/(m2.h) | Sound Insulation 30-35 dB

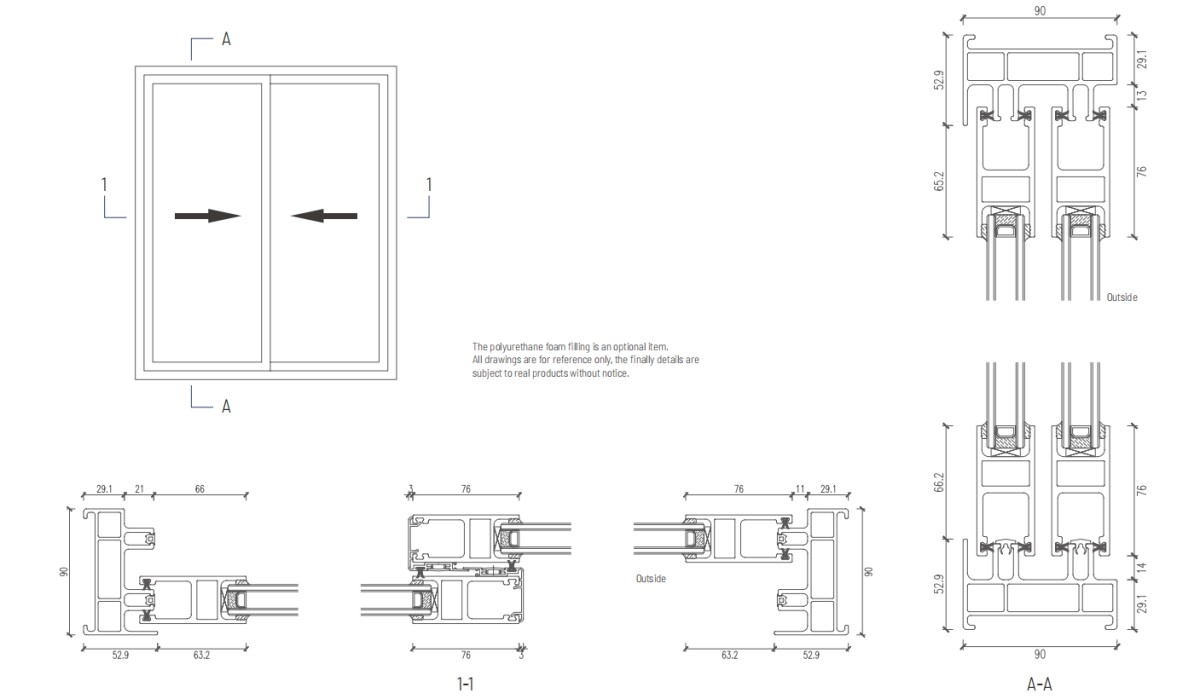

Section Drawing

1791451502966751428918378496.png@!w400


Hardware

门Roto-Black

Black

门Roto-香槟金色

bronze

门Roto-银色

Silver

门Roto-white

white

ROTO: Bronze

Colors

Basic Colors

图片白底修改 (2)
