GR132 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Lift-Sliding Door

GR132 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Lift-Sliding Door

Introduction:

The GR132 Low Power Consumption Fiberglass Reinforced Polyurethane (FRPU) Lift-Sliding Door is engineered for oversized glazed openings that demand both effortless movement and uncompromising sealing. Utilising a heavy-duty multi-cavity FRPU profile with a bending strength of 1442 MPa and thermal conductivity of only 0.114 W/(m2.K), it carries very large sash weights while keeping energy loss to a minimum. The lift-sliding mechanism raises the sash for a friction-free glide and then lowers it into a multi-point EPDM seal, achieving up to 700 Pa water tightness and 30-40 dB sound insulation.

This is the door of choice for luxury villas with sweeping terrace or garden frontages, five-star hotel ballrooms and pool decks, premium penthouses, and prestigious commercial showrooms where a single vast opening defines the space. Corrosion-resistant, salt-resistant, and 0-VOC, the GR132 stays reliable in demanding climates.
Contact Us

Basic Configuration

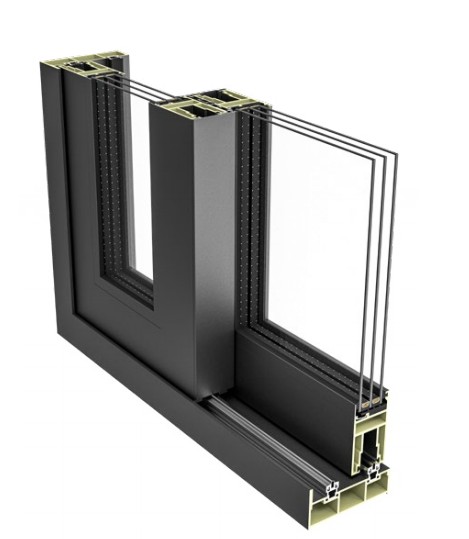

GR132 提升推拉门1


ProfileFiberglass Reinforced Polyurethane (FRPU) Thermal Break Profile
Structural DesignHeavy-Duty Multi-Cavity Lift-Sliding Structure
Sealing SystemMulti-Point EPDM Sealing System
Opening ModeLift-Sliding (Horizontal Slide with Lift & Lock)
Leaf OptionsSingle Leaf, Double Leaf & Multi-Track (Configurable)
Glass5Low-E+12A+5 / 5Low-E+12Ar+5 / 5Low-E+9Ar+5+9Ar+5Low-E
HardwarePremium Lift-Sliding Hardware System
U-Factor1.4-2.0 W/(m2.K)
Surface TreatmentEco-Friendly Water-Based Paint
PerformanceWind Load 4.0 <= P3 < 4.5 kPa | Water Tightness 500-700 Pa | Air Tightness q1 0.5-1.0, q2 1.5-3.0 m3/(m2.h) | Sound Insulation 30-40 dB

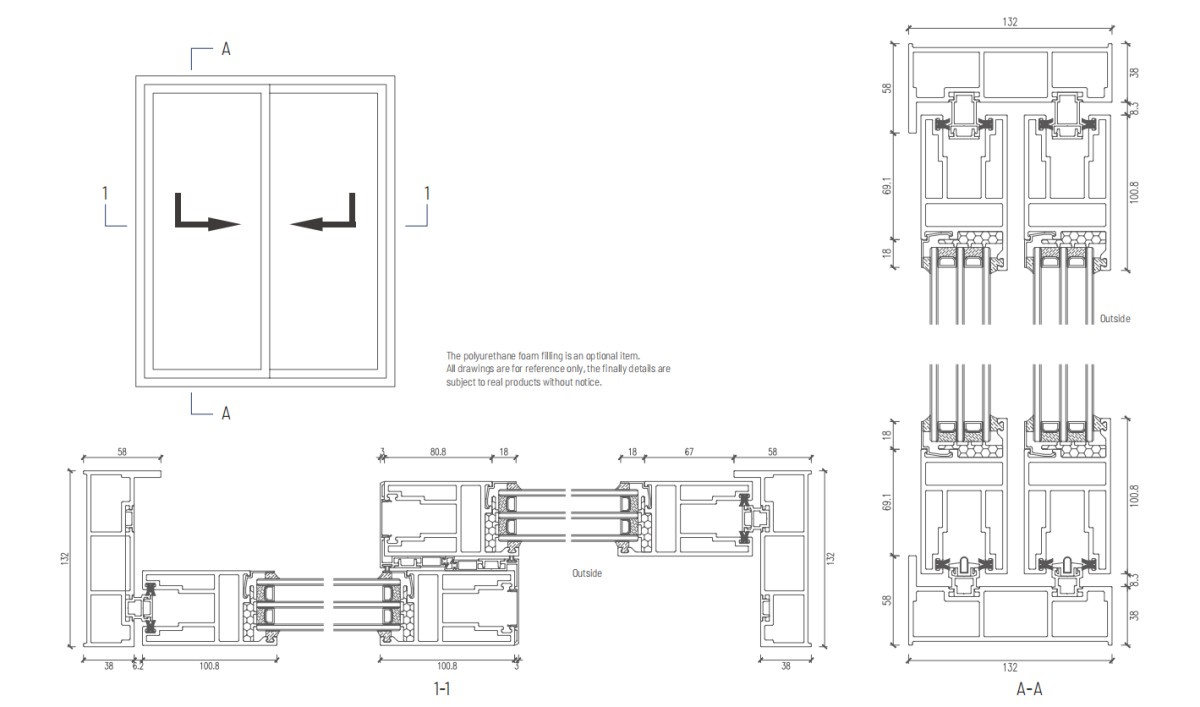

Section Drawing

1791451704966752279451926528.png@!w400


Hardware

门Roto-Black

Black

门Roto-香槟金色

bronze

门Roto-银色

Silver

门Roto-white

white

ROTO: Bronze

Colors

Basic Colors

图片白底修改 (2)
