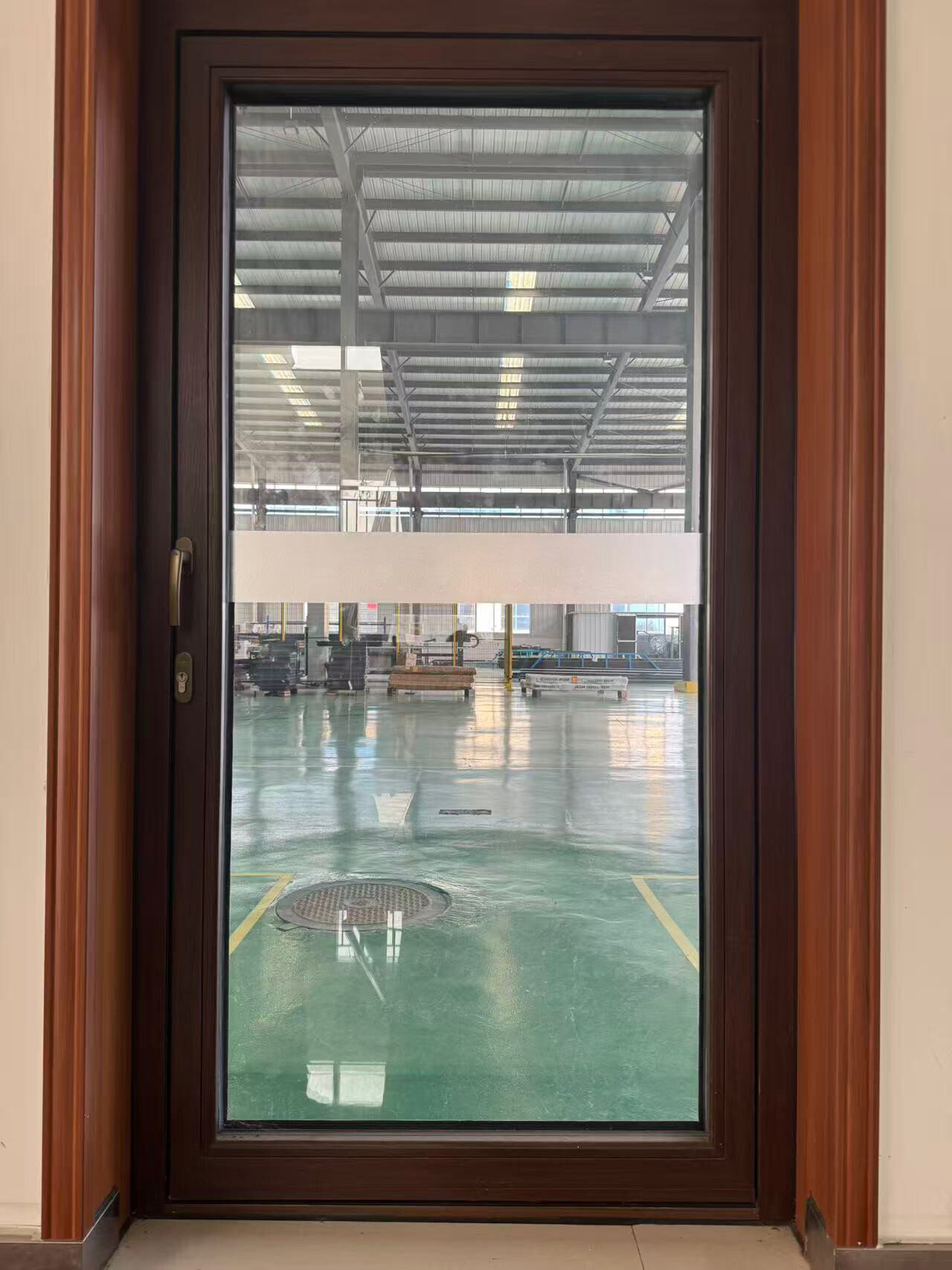

85 Series Aluminum Wood Casement Doors

85 Series Aluminum Wood  Casement Doors

Introduction:

The 85 Series Aluminum Wood Tilt & Turn window combines a warm composite-wood interior with a durable aluminum exterior, offering dual-function ventilation and high energy performance for modern residential projects. The interior composite material—made from 70% premium wood powder and 30% high-polymer materials—is environmentally safe, exceeding EU RoHS standards, and provides long-term stability with benefits such as no heavy metals, non-toxicity, moisture resistance, Class B1 fire performance, and a 20-year anti-deformation warranty.

Featuring German Roto hardware, triple glazing, and a 3-EPDM sealing system, the 85 Series achieves U-values below 1.2 and fully meets NAFS and Canadian Energy Star requirements. The tilt & turn operation offers secure micro-ventilation, easy cleaning, and superior airtight performance—making it an ideal solution for cold climates, high-end homes, and projects seeking a premium alternative to traditional wood windows.
Contact Us

Basic Configuration

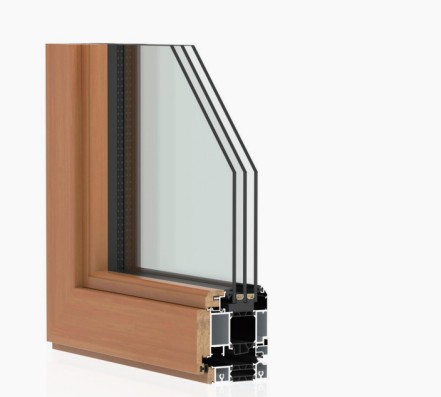

门样角图


Frame materialAluminum+Polymer-Composite Wood(Dezon)
Frame thickness85mm
Sash thickness95mm
Thickness2.2mm
Sealing System3EPDM
Glass5DSLow-e+12A+5DSLow-e+12A+5G
HardwareRoto hinge weighing 100kg
U-Factor≤1.1-2.0w/㎡ ·k
Size2100mm≤Height≤3000mm
900mm≤Width≤1200mm
Surface TreatmentFilm coating

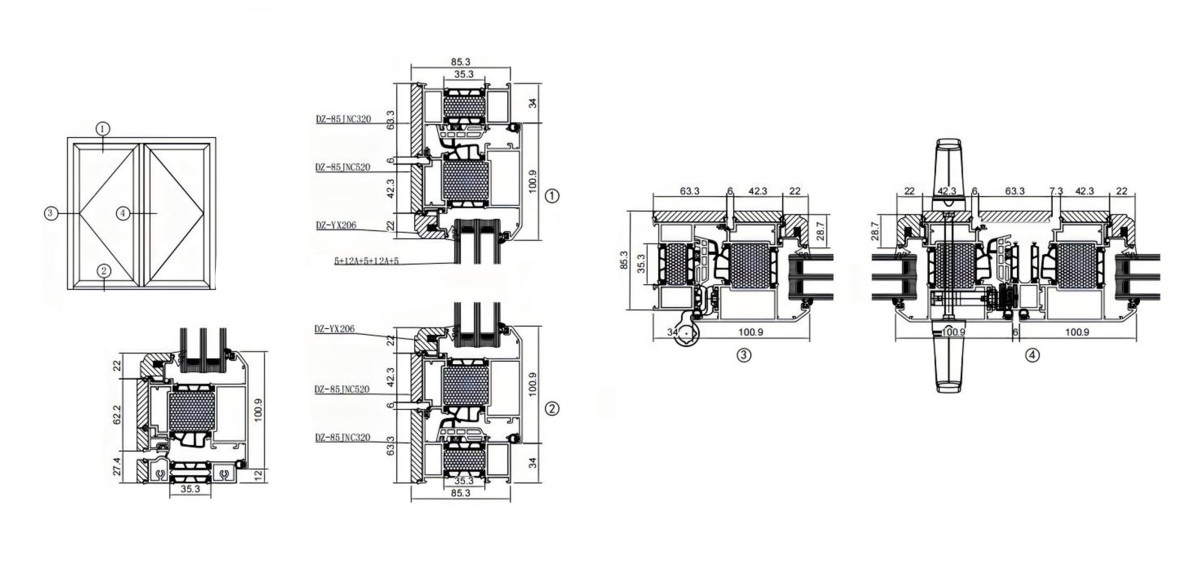

Section Drawing

门

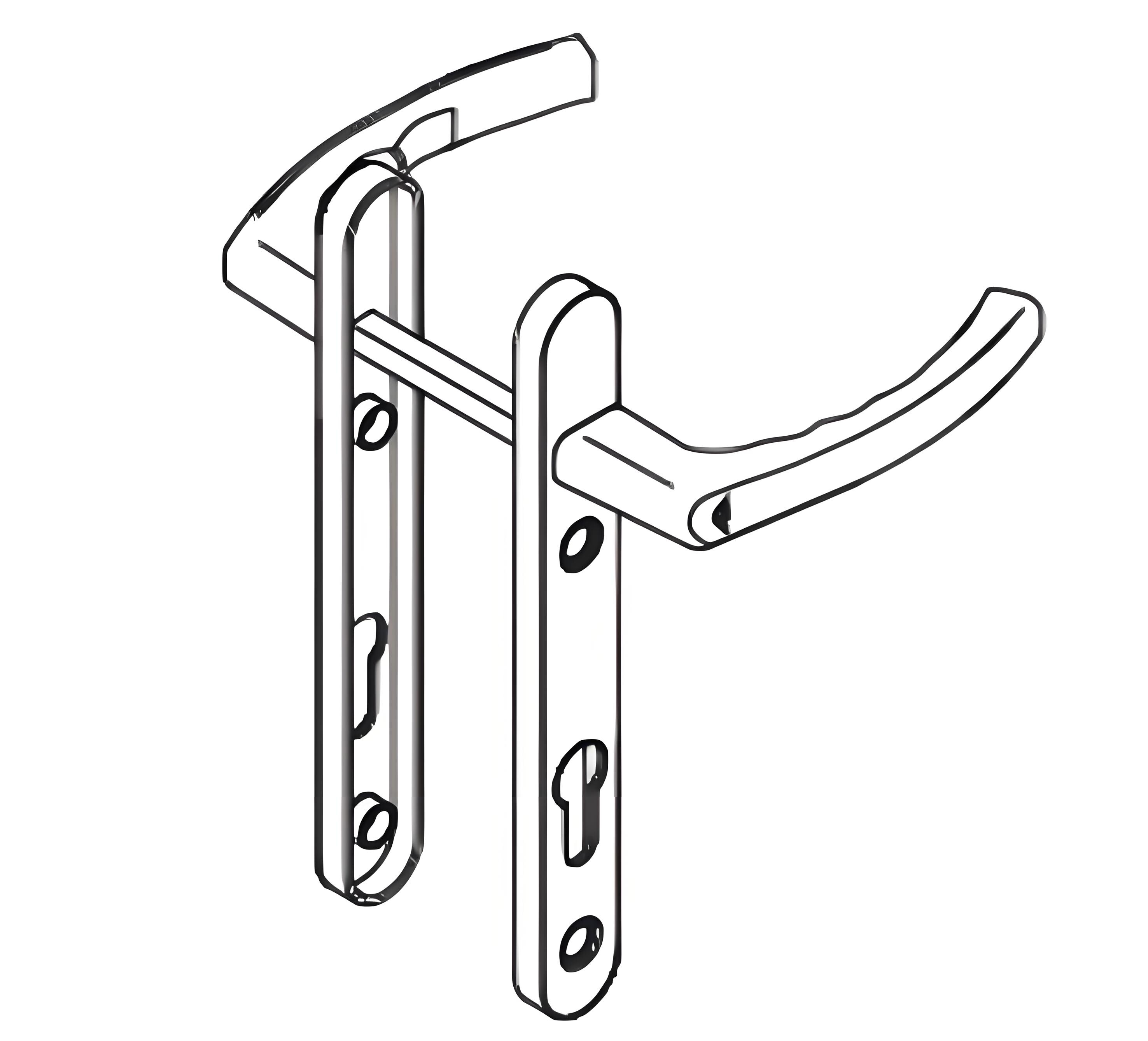

Hardware

门五金(1)

Colors

  • Indoor Side Color

Custom Wood Color

  • Weathered Ash
  • 图层 580
    Walnut
  • 图层 581
    Cherry
  • 图层 29
    Cedar White
  • Dalbergia Bariensis

Weatherproof PVDF Film

  • 图层 576
    Patek Philippe
  • 图层 577
    Cartier
  • 图层 578
    Royal Oak
  • Outdoor Side Color(Avaliable in customizable colors)
  • 图层 582
    Coffee brown
  • 图层 583
    Metal Gray
