TRYBA TL84 Typhoon-Resistant Aluminum Lift and Slide Window: Redefining Building Safety Standards in Extreme Weather

I. Innovative Technology: How Does It Withstand Category 12 Typhoons?

1. Structural Reinforcement: Z-Shaped Thermal Break Design and High-Strength Aluminum Frame

The TL84 typhoon-resistant window features 84mm-wide 6063-T5 aluminum alloy profiles with a wall thickness of 1.8mm, ensuring the frame remains deformation-free under strong winds. The unique Z-shaped thermal break structure, combined with 16mm+26mm PA66+GF25 insulation strips, enhances wind resistance (Level 9) while effectively blocking heat transfer, achieving a U-value as low as 1.8–2.5 W/(㎡·K), balancing strength and energy efficiency.

2. Italian Giesse T-REX Hardware System: 120kg Load Capacity, Rock-Solid Stability

The load-bearing and sliding performance of windows directly impact their wind resistance. The TL84 incorporates the Italian Giesse T-REX heavy-duty sliding system, supporting a single sash weight of 60kg–120kg. Paired with precision rails and anti-derailment design, it ensures smooth operation even under strong wind impact, eliminating the risk of detachment.

3. Multi-Channel Drainage + One-Way Valve: No Leakage During Heavy Rain

Traditional windows often leak due to poor drainage during typhoons. The TL84 adopts an innovative multi-channel drainage system, equipped with a high-capacity water reservoir and one-way drainage valve, ensuring rapid rainwater discharge and preventing backflow. Combined with TPE high-elasticity sealing strips (air tightness Level 5, water tightness Level 6), it keeps interiors dry even during torrential rain of up to 200mm per hour.

II. Beyond Tradition: Four Core Advantages of the TL84

1. Safety in Extreme Weather

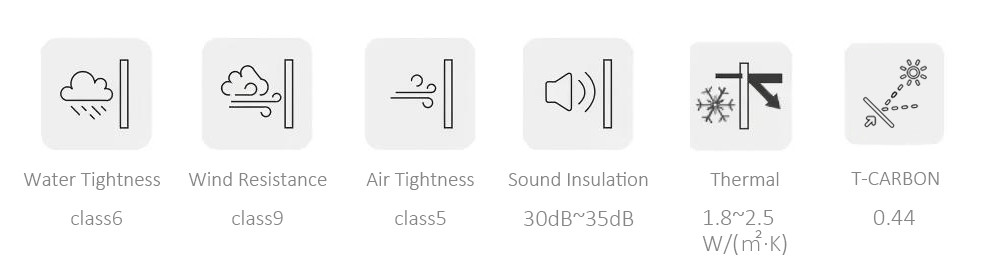

• Wind Resistance Level 9: Withstands Category 12 typhoons (wind speed ≥32.7m/s), ideal for coastal high-rises.

• Water Tightness Level 6: Passes 3000Pa wind-driven rain tests with zero leakage.

• Anti-Misoperation Safety Lock: Prevents accidental opening during strong winds, enhancing safety.

2. Energy Efficiency and Environmental Friendliness

• Double Glazing (5G+12A+5G): Sound insulation up to 30dB–35dB, effectively blocking outdoor noise.

• Solar Heat Gain Coefficient (SHGC) 0.44: Reduces summer cooling loads by over 15%.

• Low U-Value Design: Exceeds national standards for thermal insulation, suitable for cold climates.

3. User-Friendly Details for Effortless Operation

• Giesse-Specific Handle: Ergonomically designed for easy pushing and pulling.

• Silent Roller System: Smooth and noise-free operation.

• Surface Treatment Options (Powder Coating/Renolit Film): Anti-corrosion, UV-resistant, and long-lasting color retention.

4. Wide Applicability

• Residential: High-rise apartments, villas, coastal homes.

• Commercial Buildings: Hotels, offices, hospitals.

• Public Facilities: Airports, schools, stadiums.

III. Why Choose the TRYBA TL84 Typhoon-Resistant Window?

1. European Technology, Locally Optimized
   TRYBA combines Italian Giesse hardware technology with Asian typhoon climate needs, creating products tailored for coastal regions.

2. Full Lifecycle Service
   From design and installation to after-sales maintenance, TRYBA provides end-to-end technical support to ensure long-term performance stability.

3. Certified Quality Assurance
   Complies with ISO 9001 Quality Management System and international typhoon-resistant building standards (e.g., ASTM E330 wind pressure testing).

IV. Conclusion: Armor Your Building Against Typhoons

The TRYBA TL84 Typhoon-Resistant Window is more than just a window—it’s a "safety guardian" for buildings. It redefines performance standards for extreme weather, allowing users to enjoy a safe, comfortable, and energy-efficient living environment without fear of typhoons or storms.

Choose TRYBA for peace of mind in any storm!

For technical specifications, project cases, or customized services, contact the TRYBA professional team for comprehensive solutions.
