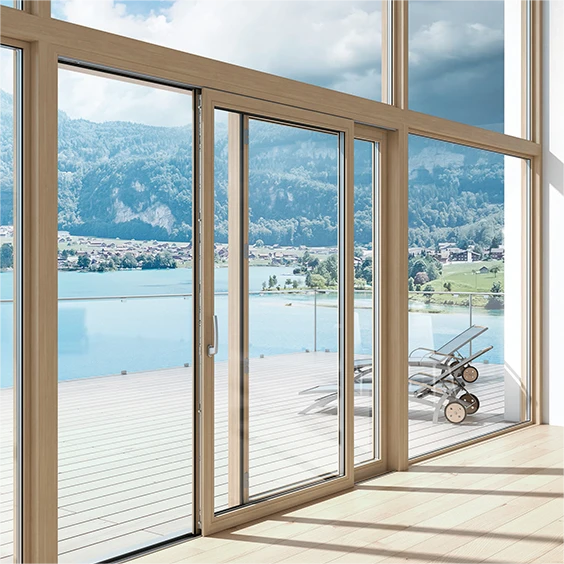

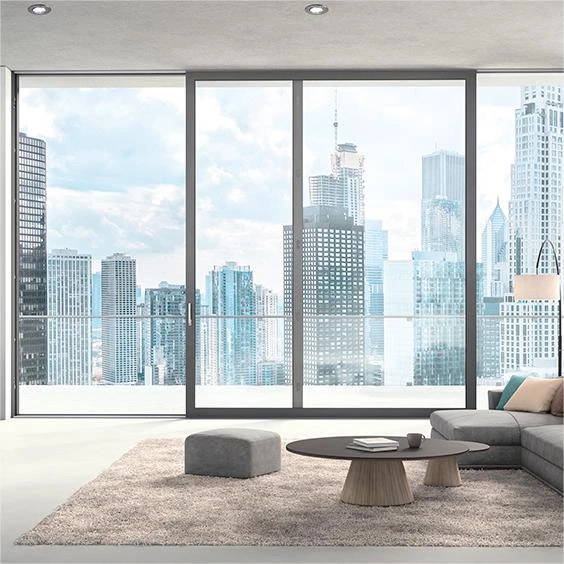

E195 Tightly Sealed uPVC/Vinyl Lift and Slide Door

Introduction:

TRYBA Elegant 195 Series Fully Sealed Sliding Door features a 5-chamber UPVC/vinyl profile structure (profile thickness: 195mm, wall thickness: 2.8mm) and a high-airtightness hardware system, paired with dual EPDM foam sponge + pile weatherstrip sealing for superior thermal insulation (U-value ≤1.4 W/m²·K). Equipped with 6mm+12A+6mm+12A+6mm triple-layer tempered glass, it delivers exceptional sound insulation (Rw≥42dB) and wind resistance (5.5 kPa). The Roto hardware system (400kg single-leaf capacity) ensures smooth operation, while the patented opening mechanism combines panoramic views with safety features like anti-pinch design. Available in heights of 750-2400mm and widths of 1450-5000mm, with single-sided film coating surface treatment—an ideal solution for high-end energy-efficient buildings.
CONTACT US

BASIC CONFIGURATION

Frame material5 chambers UPVC/Vinyl profile
Frame thickness195mm
Thickness2.8mm
Sealing SystemEPDM Foam Sponge & Pile Weatherstrip System
Glass6mm+12A+6mm+12A+6mm Tempered Glass
HardwareRoto hardware weighting 400kg(Single-leaf) for tightly sealed sliding systems
U-Factor≤1.4w/㎡·k
Height750mm-2400mm
Width1450mm-5000mm
Surface TreatmentSingle-sided film coating
U factor0.22

FEATURES AND BENEFITS

1

Enhanced Insulation

Enhanced insulation with optimized single-sashfive-chamber profile design.

2

Smooth Operation

Independent hardware system ensures smoothoperation and high sealing performance.

3

Quiet and Safe

Premium accessories offer anti-pinch design andultra-quiet sliding

4

Patented Locking Design

Patented locking system with full perimeter sealing,high load-bearing sash supports expansive viewswith ease.

5

Thermal Insulation Class 8

Uw≤1.4W/(m·k)

6

Air Tightness Class 8

q1<0.5

7

Sound Insulation Class 5

Rw≥42dB

8

Water Tightness Class 6

▲p≥700

9

Wind Load Resistance Class 10

P≥5.5KPa

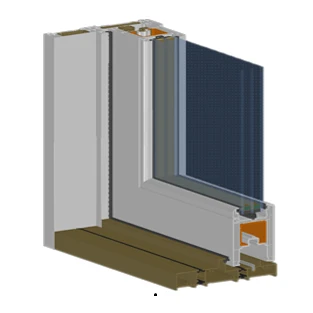

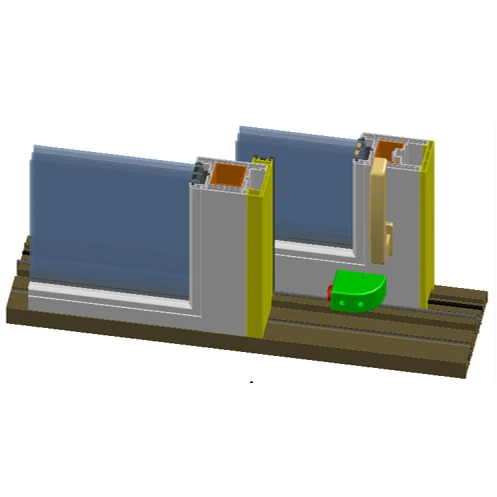

PROFILE NODE DIAGRAM

195节点图

FILM COATING COLAR CHART

10
11
12
13
14
15

NOTE:If you need more customization requirements,please freely contact us for more information.
