Aegis 80 uPVC/Vinyl Casement/Awing Window with Nailing Flange





Introduction：

TRYBA Aegis Series UPVC Casement/Awning Windows are built for performance, precision, and efficiency. Featuring an integrated nailing flange, these windows simplify installation while ensuring a tight, secure fit. With a Uw-value as low as 1.1 W/(m²·K), they offer excellent thermal insulation. Compliant with NAFS standards and reinforced with structural steel, They meet the testing standards for both ENERGY STAR® and CSA A440 certifications.Ideal for both eco-conscious homes and style-focused projects, these windows deliver lasting durability, energy savings, and design flexibility.

Canadian Market Contact Information:

Yvonne Yu

Phone: +1 604-366-3630

Email: office@aegissupply.ca

Address: 120-5811 Cedarbridge Way, Richmond, BC V6X 2A8

BASIC CONFIGURATION

Type	Casement Window/Awning Window
Profile	UPVC-The most well-known profile brand in China
Frame thickness	80mm
Cavity structure	Conch 7-chamber eco-profile(enhanced thermal insulation and mechanical strength; reduces heat transfer)
Surface technics	Film Laminating(German Renolit Film) or white nude color
Sealing strip	Triple Sealing System
Colour	White base material, refer to the color card of the Renolit film Laminating
Glasses	6GLow-e+12Ar(warm)+6G+12Ar(warm)+6GLow-e[Technoform TGI Warm Edge Spacer]	5GLow-e+12Ar(warm)+5G+12Ar(warm)+5GLow-e[Technoform TGI Warm Edge Spacer]	6GLow-e+12Ar+6G	6GLow-e+16Ar+6GLow-e(Dow Corning silicone sealant;Double Silver Double Glazing)
SHGC	0.23	0.5	0.54	0.24
Glass U Value	0.87	0.78	1.35	0.99
U-Factor	1.1-1.2W/(m²·K)	0.9-1.1W/(m²·K)	1.4-1.5W/(m²·K)	1.1-1.2W/(m²·K)
Hardware load-bearing	≤130kg;Configure positioning support

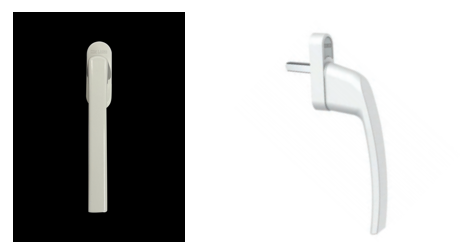

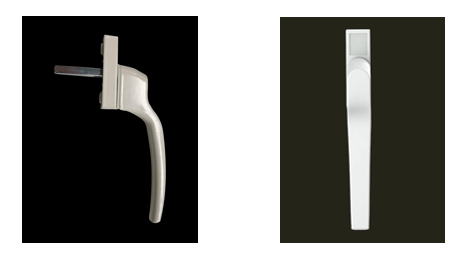

Handling	Kinlong：PZSW001;LLK-L40
Handle color	Standard Colors:White；Black(The color can also be customized)
lock cylinder	No
Out-swing restrictor	Configure wind braces

FEATURES AND BENEFITS

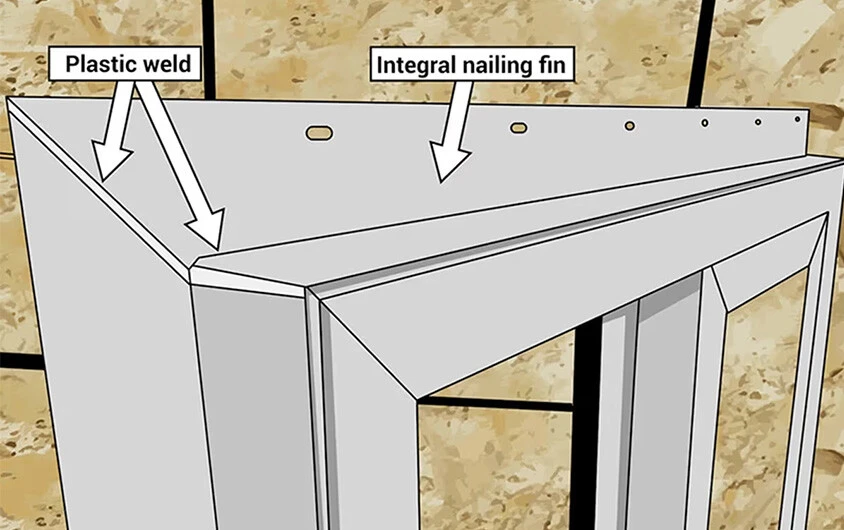

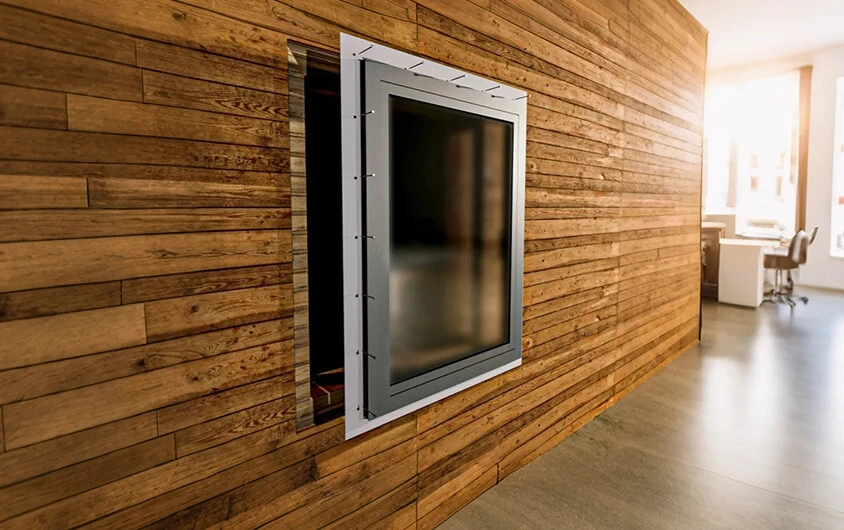

Green windows/doors combine energy-saving materials；This features a 4cm nailing flange on all four sides for easy installation；Reinforced steel inserts，Superior durability

It is interior of the profile is designed with a 7-chamber structure, which greatly enhances the thermal insulation performance of the profile

Film Laminating(German Renolit Film)，Protect the profiles from sunlight damage and ensure a 30-year warranty

Standard with Triple-pane insulating glass with Low-E coating；Argon gas fill；Warm Edge spacers；U-factor ≤1.2；SHGC<0.3 ；meeting the requirements of ENERGY STAR®

PROFILE NODE DIAGRAM

TECHNICAL SPECIFICATIONS

Performance of doors and Windows	Casement windows (CW-PG30)	Awning Windows （CW-PG30）	Fixed Windows （CW-PG40）
Air Tightness / Air Leakage	75Pa	75Pa	75Pa
Water Penetration Resistance	290Pa	440Pa	720Pa
Wind Load Resistance	SLS:+1440Pa ULS:+2160Pa	SLS: +1440Pa ULS:+2160Pa	SLS:+1920Pa ULS:+2880Pa
U-Factor	1.2w/m².k	1.2w/m².k	1.18w/m².k
Sound insulation grade	35dB	35dB	40dB
